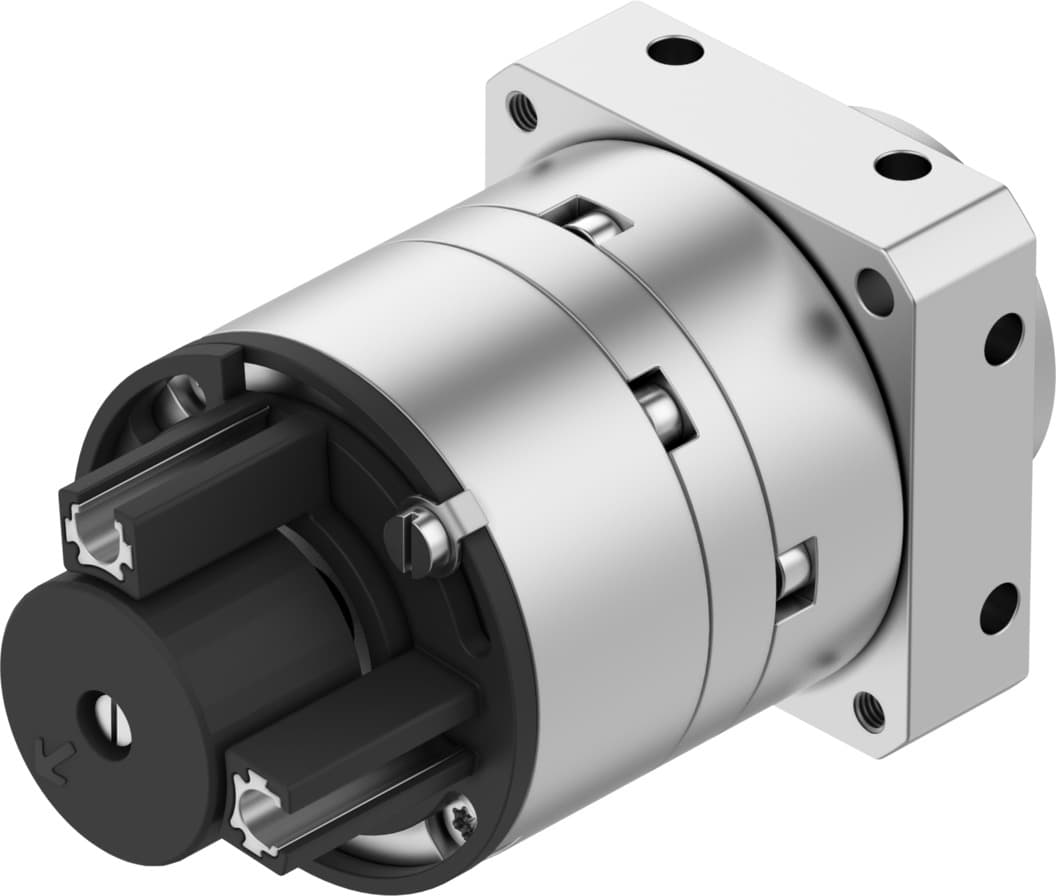

dsm-8-180-p-a-ff-fw
Product ID:5841
Updated: 2026/4/3
Key Features
- 1Achieve precise 0-180° swivel angle adjustment for accurate control. 2、Operate double-acting for reliable and efficient performance. 3、Utilize robust construction with high-alloy steel shafts and durable seals. 4、Ensure compatibility with compressed air per ISO 8573-1:2010 standards. 5、Benefit from versatile mounting options with internal thread and M3 connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Cushioning angle | 0deg |
| Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
| Mounting position | Any | Precision adjustment | -5deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991265 |
| Operating pressure | 3.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Theoretical torque at 6 bar | 0.35Nm | Permissible mass moment of inertia | 0.0013kgm2 |
| Product weight | 162g | Type of mounting | With internal thread |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
| Housing material | Aluminum Anodized | Manufacturer ID | 185939 |
Specifications may be subject to change without notice
