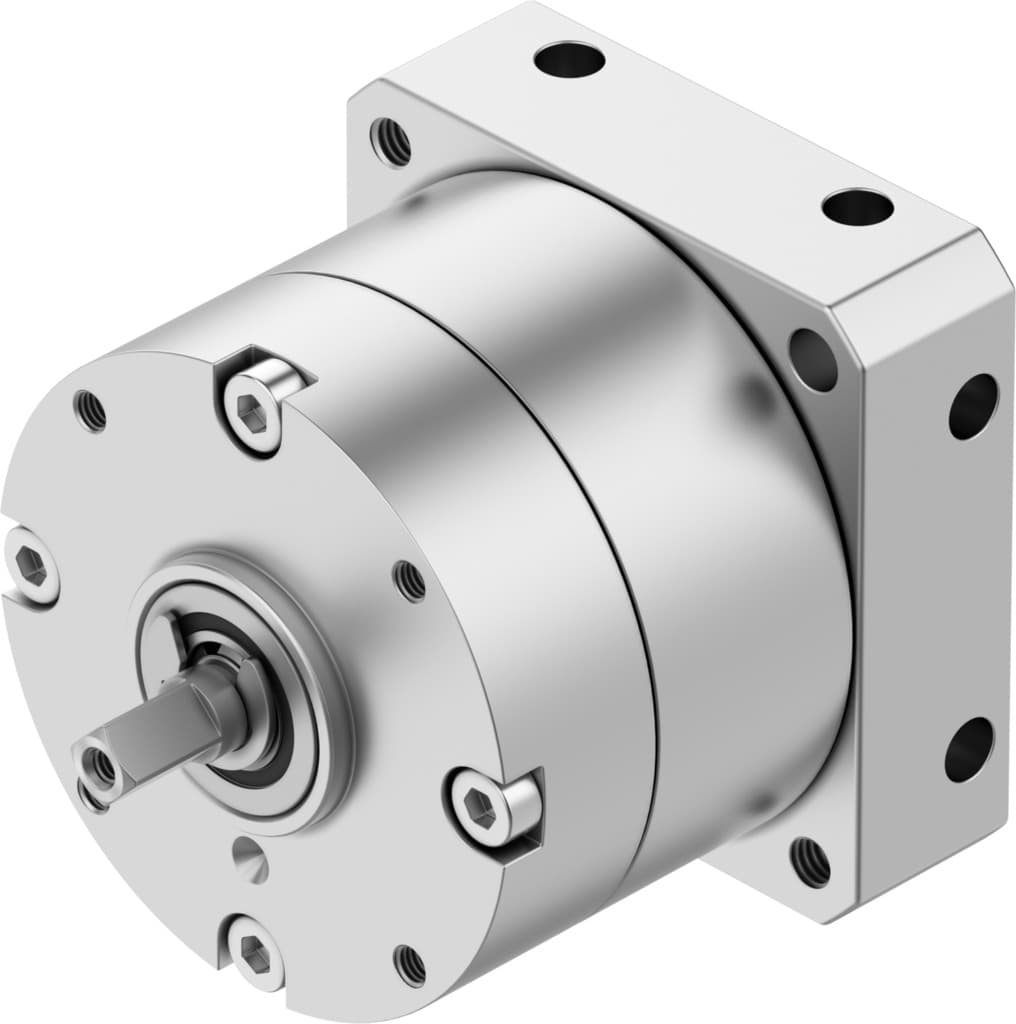

dsm-t-10-240-p
Product ID:3013
Updated: 2026/4/3
Key Features
- 1Achieve precise 240° adjustable swivel angle for accurate positioning. 2、Ensure durability with high-alloy stainless steel drive shafts. 3、Operate efficiently with double-acting mode and clean air compliance. 4、Simplify installation with versatile flanged or spigot shaft mounting options. 5、Meet industry standards including VDMA24364 for quality and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 240deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | None |
| Symbol | 00991265 | Operating pressure | 3.5bar 8bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C 60°C | Theoretical torque at 6 bar | 1.7Nm |
| Permissible mass moment of inertia | 0.0026kgm2 | Product weight | 200g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) | Housing material | Aluminum Anodized |
| Manufacturer ID | 1562093 |
Specifications may be subject to change without notice
