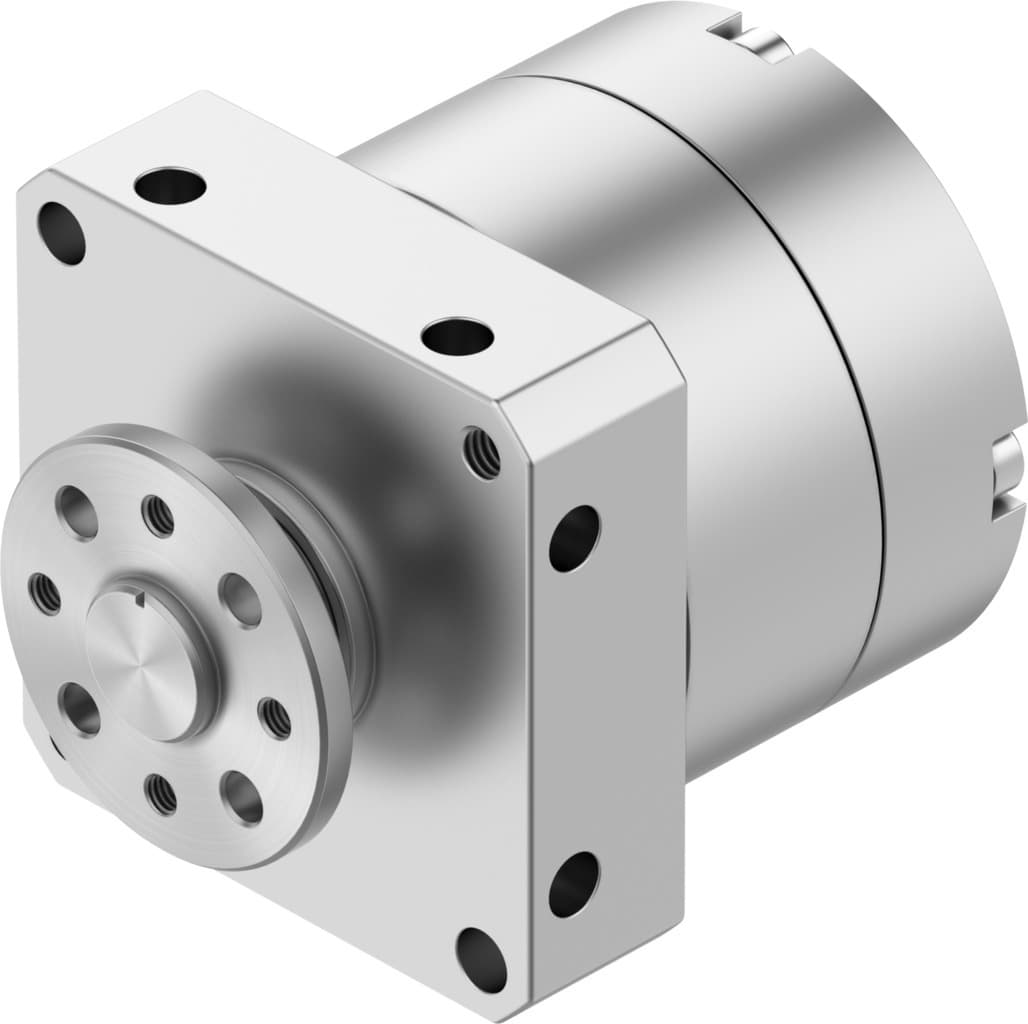

dsm-t-10-240-p-fw
Product ID:3035
Updated: 2026/4/3
Key Features
- 1Achieve precise 240° positioning with the adjustable swivel angle. 2、Operate reliably in double-acting mode for efficient automation. 3、Deliver 0.85 Nm of torque at 6 bar for demanding tasks. 4、Ensure compatibility using compressed air to ISO 8573-1:2010 standards. 5、Benefit from durable stainless steel and TPE-U(PU) seal construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 240deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | None |
| Symbol | 00991265 | Operating pressure | 3.5bar 8bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C 60°C | Theoretical torque at 6 bar | 1.7Nm |
| Permissible mass moment of inertia | 0.0026kgm2 | Product weight | 210g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) | Housing material | Aluminum Anodized |
| Manufacturer ID | 1562318 |
