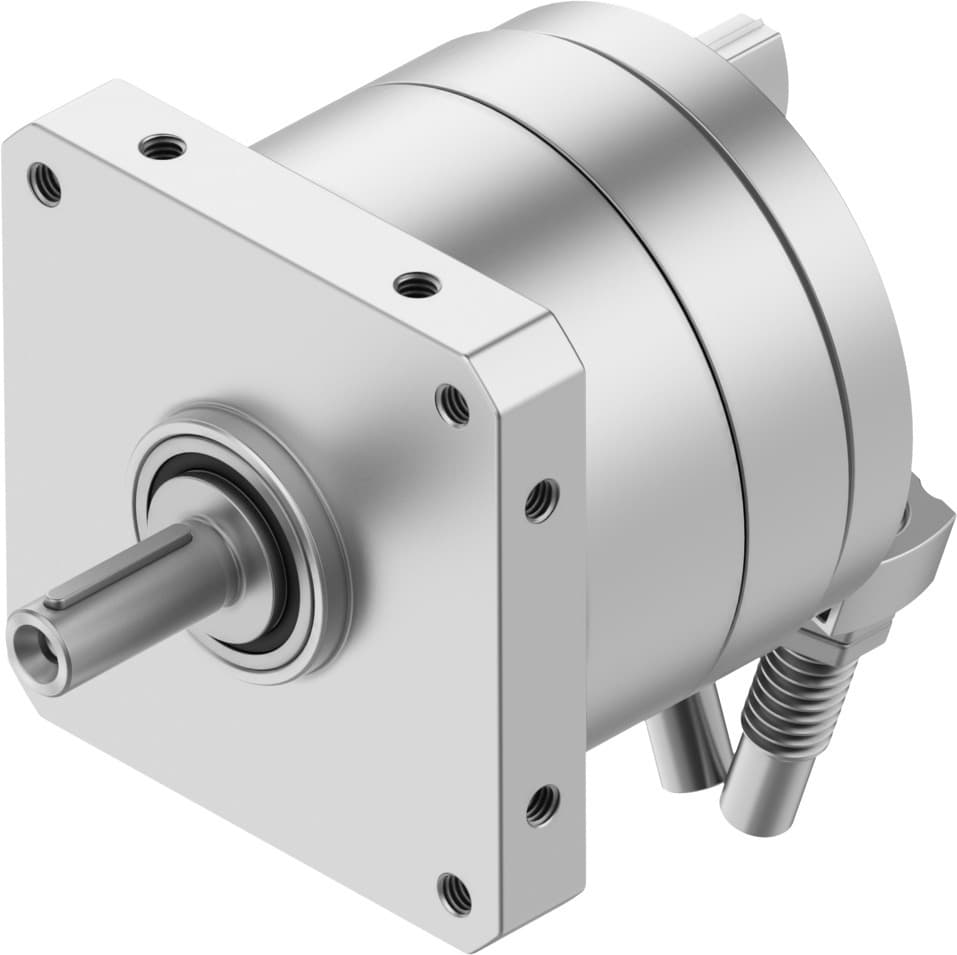

dsm-t-12-270-cc-a-b
Product ID:758
Updated: 2026/4/3
Key Features
- 1Achieve smooth operation with 15-degree cushioning to reduce component wear. 2、Enable versatile positioning across a 0-246 degree rotation and swivel range. 3、Reduce vibrations and enhance stability using shock absorbers at both ends. 4、Handle efficient forward and reverse movements with double-acting operation. 5、Utilize compressed air up to 10 bar for reliable industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Cushioning angle | 15deg |
| Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
| Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 18N |
| Max. radial force | 45N | Theoretical torque at 6 bar | 2.5Nm |
| Permissible mass moment of inertia | 0.008kgm2 | Product weight | 375g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145088 |
