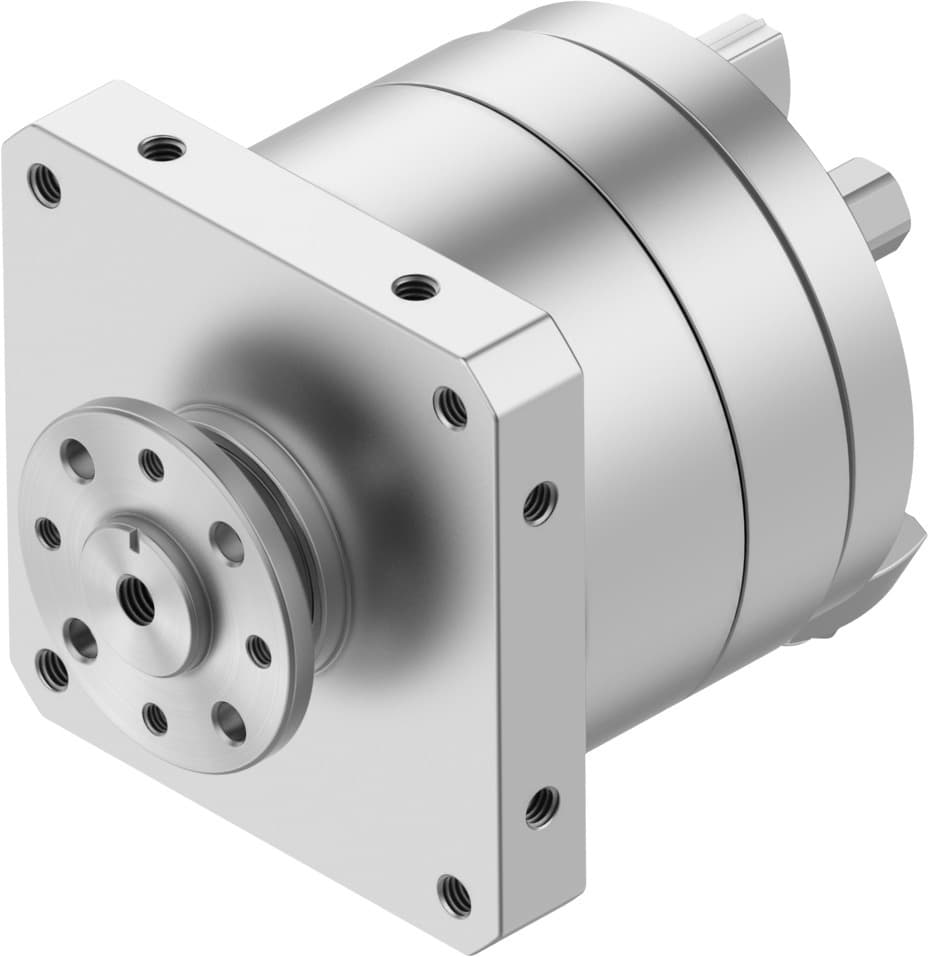

dsm-t-12-270-p-fw-a-b
Product ID:757
Updated: 2026/4/3
Key Features
- 1Achieve precise 270° swivel control for flexible automation positioning. 2、Minimize vibration and noise with integrated elastic cushioning rings. 3、Ensure reliable operation in compressed air systems meeting ISO 8573-1:2010. 4、Simplify integration with optional mounting and -6° fine adjustment. 5、Benefit from durable nickel-plated shafts and corrosion-resistant aluminum housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Cushioning angle | 1.8deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 18N |
| Max. radial force | 45N | Theoretical torque at 6 bar | 2.5Nm |
| Permissible mass moment of inertia | 0.005kgm2 | Product weight | 383g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145087 |
