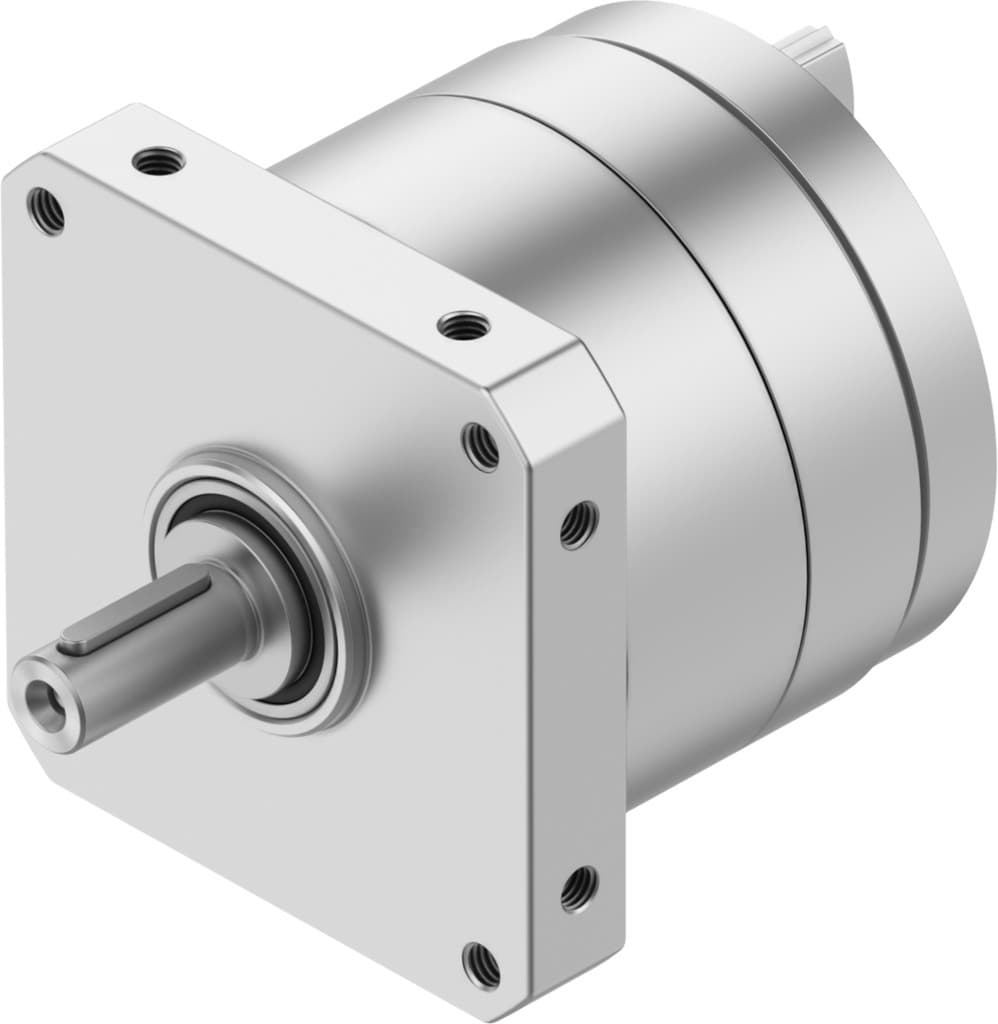

dsm-t-16-270-a-b
Product ID:781
Updated: 2026/4/3
Key Features
- 1Achieve flexible automation with a 0-270° adjustable swivel angle. 2、Control motion precisely using the double-acting operation mode. 3、Ensure reliable positioning with integrated proximity switch detection. 4、Benefit from durable construction featuring a corrosion-resistant nickel-plated steel shaft. 5、Simplify integration with optional mounting positions for various setups.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 30N |
| Max. radial force | 75N | Theoretical torque at 6 bar | 5Nm |
| Product weight | 590g | Type of mounting | With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 1145123 |
Specifications may be subject to change without notice
