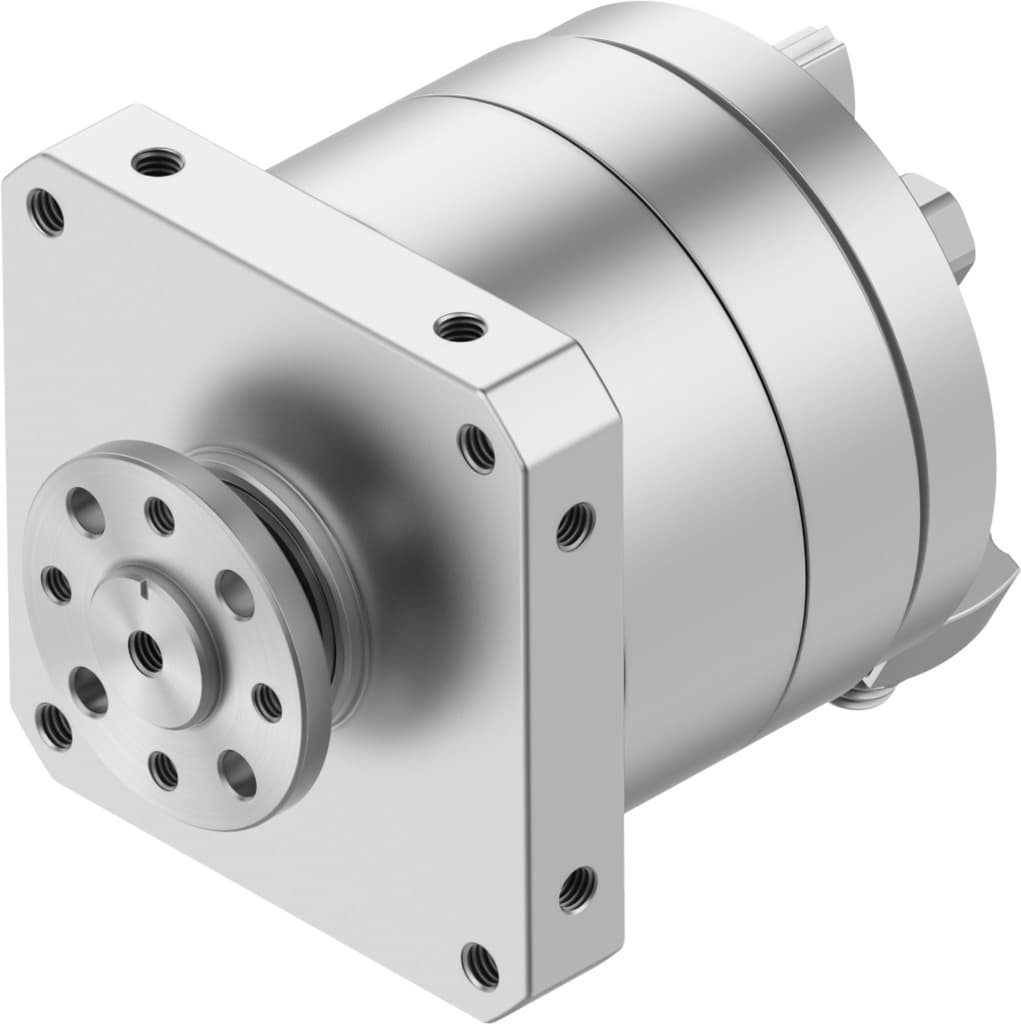

dsm-t-16-270-p-fw-a-b
Product ID:761
Updated: 2026/7/4
Key Features
- 1Achieve flexible automation with a 0-270° swivel angle.
- 2Ensure reliable bidirectional motion via a double-acting design.
- 3Power operations with ISO 8573-1:2010 compressed air for durability.
- 4Reduce wear using integrated elastic cushioning rings.
- 5Integrate easily with a compact, 690-gram lightweight build.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Cushioning angle | 1.4deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 30N |
| Max. radial force | 75N | Theoretical torque at 6 bar | 5Nm |
| Permissible mass moment of inertia | 0.01kgm2 | Product weight | 690g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145093 |
Specifications may be subject to change without notice
