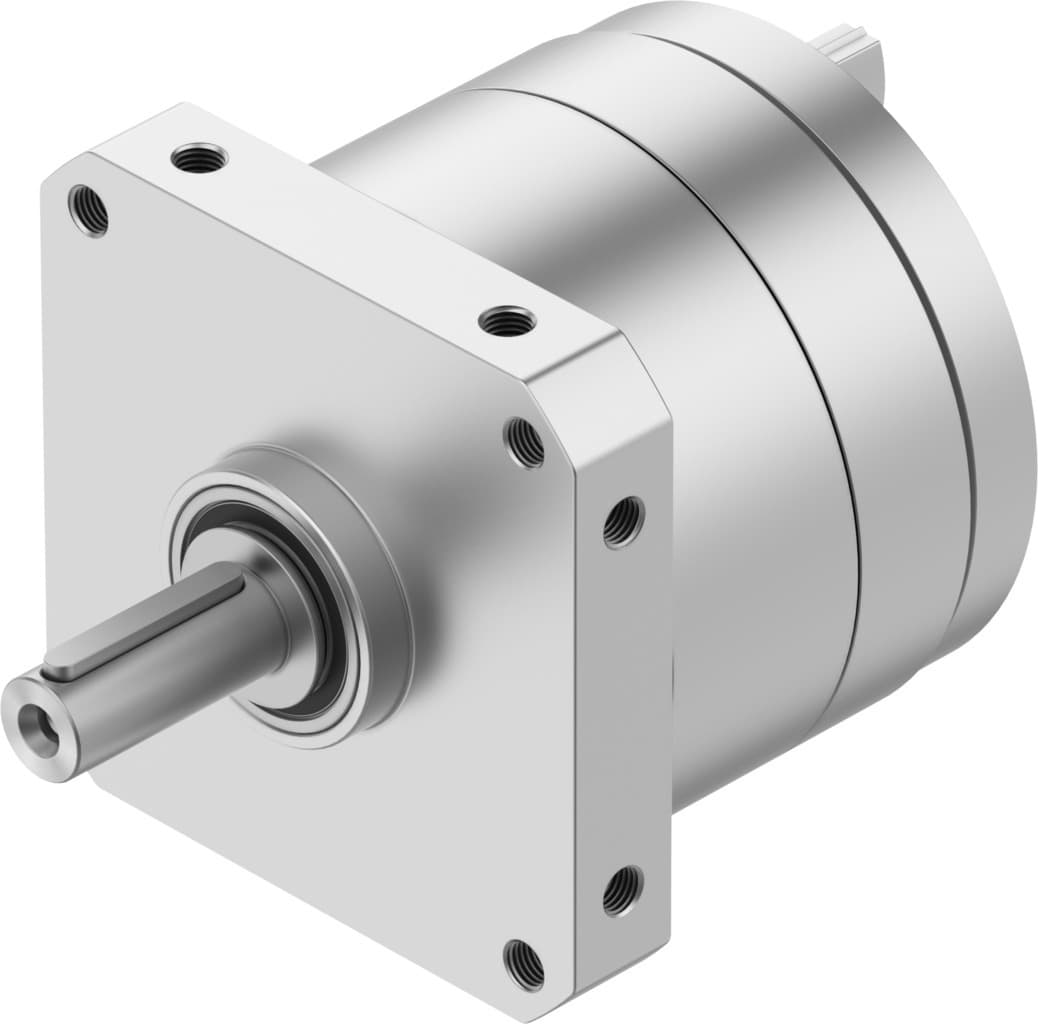

dsm-t-32-270-a-b
Product ID:783
Updated: 2026/4/4
Key Features
- 1Ensure smooth operation with a 12-degree cushioning angle. 2、Achieve versatile positioning from 0 to 246 degrees. 3、Enhance stability using integrated shock absorbers. 4、Guarantee reliability with ISO 8573-1:2010 compressed air. 5、Construct durable systems with steel and nickel-plated components.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 75N |
| Max. radial force | 200N | Theoretical torque at 6 bar | 20Nm |
| Product weight | 1865g | Type of mounting | With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 1145125 |
Specifications may be subject to change without notice
