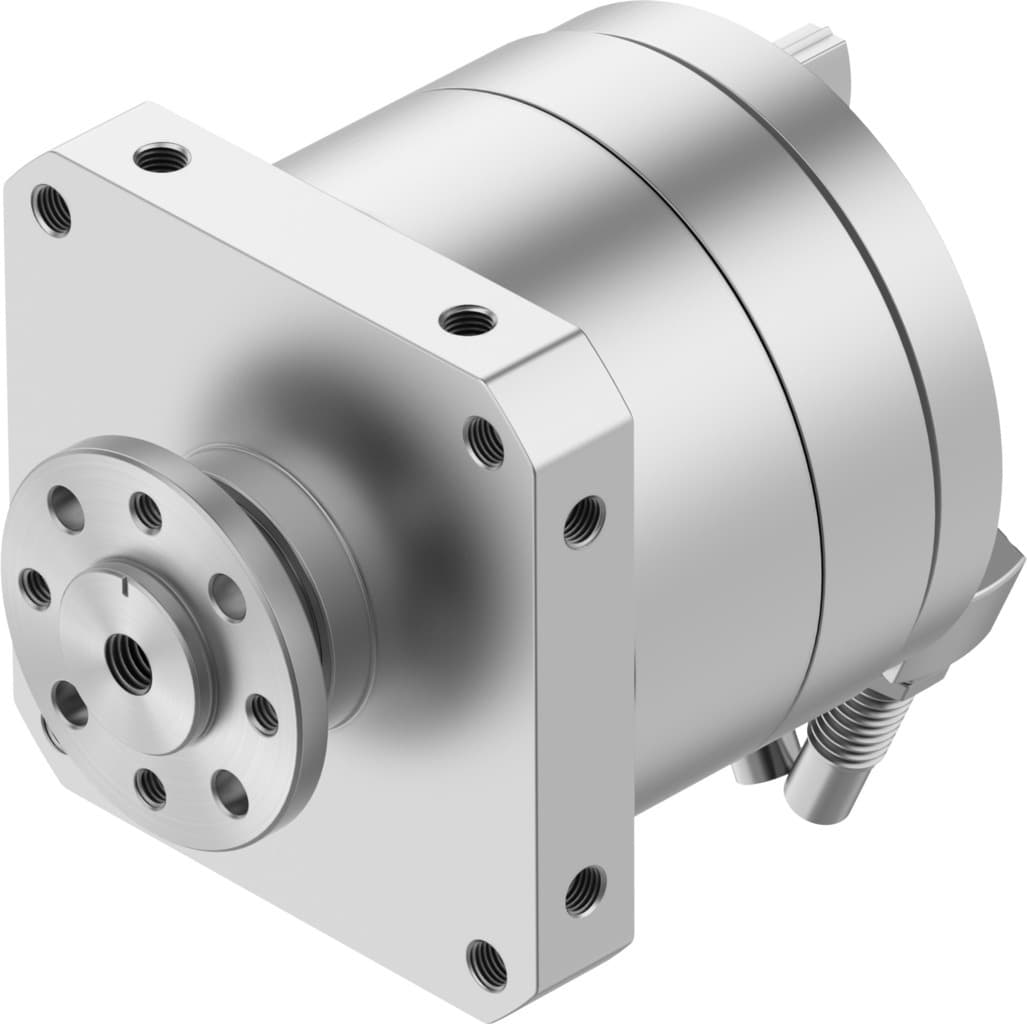

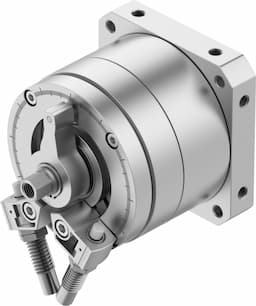

dsm-t-32-270-cc-fw-a-b
Product ID:771
Updated: 2026/4/3
Key Features
- 1Adjust swivel angles from 0 to 246 degrees for versatile positioning. 2、Utilize a double-sided shock absorber for smooth, controlled motion. 3、Operate within a 2 to 10 bar pressure range for wide compatibility. 4、Achieve precise control with fine adjustment up to -3 degrees. 5、Ensure reliable operation with rotary vane construction and position detection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Cushioning angle | 12deg |
| Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 0.7Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 75N |
| Max. radial force | 200N | Theoretical torque at 6 bar | 20Nm |
| Permissible mass moment of inertia | 0.05kgm2 | Product weight | 2165g |
| Type of mounting | With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145107 |
Specifications may be subject to change without notice
