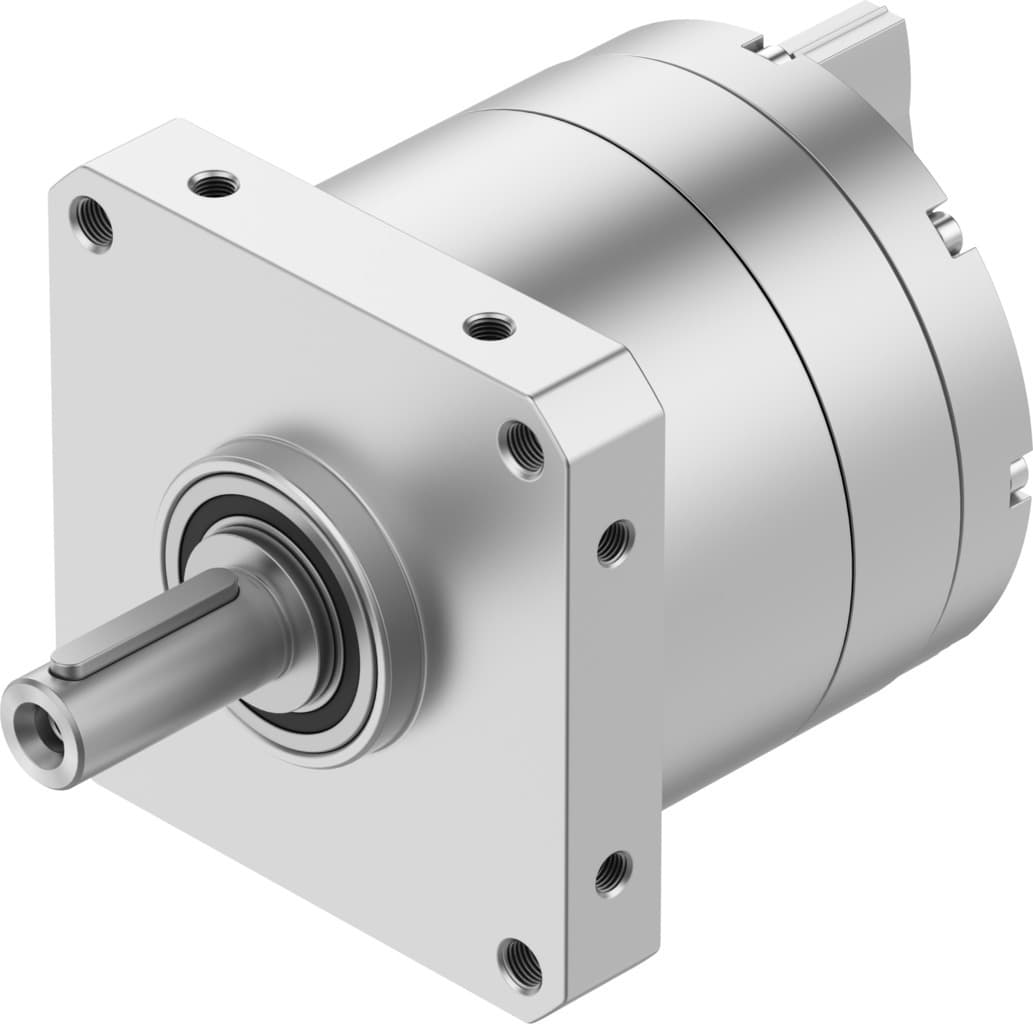

dsm-t-63-270-a-b
Product ID:785
Updated: 2026/4/4
Key Features
- 1Achieve precise motion control with a 17.5° cushioning angle and 0-240° swivel adjustment. 2、Ensure durability with a nickel-plated steel drive shaft and TPE-U(PU) seals. 3、Mount the drive in any position for flexible system design. 4、Operate efficiently with double-acting design for reduced air consumption. 5、Integrate seamlessly with systems using ISO 8573-1:2010 compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 1.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 500N |
| Max. radial force | 500N | Theoretical torque at 6 bar | 80Nm |
| Product weight | 6050g | Type of mounting | With internal thread |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 1145127 |
Specifications may be subject to change without notice
