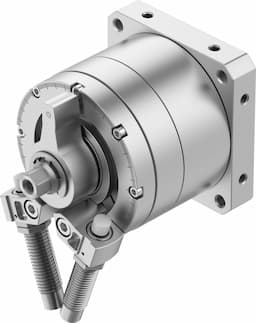

dsm-t-63-270-cc-fw-a-b
Product ID:779
Updated: 2026/4/3
Key Features
- 1Achieve precise 0-270° rotation with the DSM-T-63-270-CC-FW-A-B for flexible motion control. 2、Ensure smooth operation and reduce wear using integrated shock absorbers at both ends. 3、Install in any assembly position for easy integration into diverse industrial setups. 4、Operate efficiently within a 2-10 bar pressure range for compressed air systems. 5、Benefit from a 63mm size and 17.5° cushioning angle for reliable automation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Cushioning angle | 17.5deg |
| Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 0.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 500N |
| Max. radial force | 500N | Theoretical torque at 6 bar | 80Nm |
| Permissible mass moment of inertia | 0.5kgm2 | Product weight | 7230g |
| Type of mounting | With internal thread | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145119 |
Specifications may be subject to change without notice
