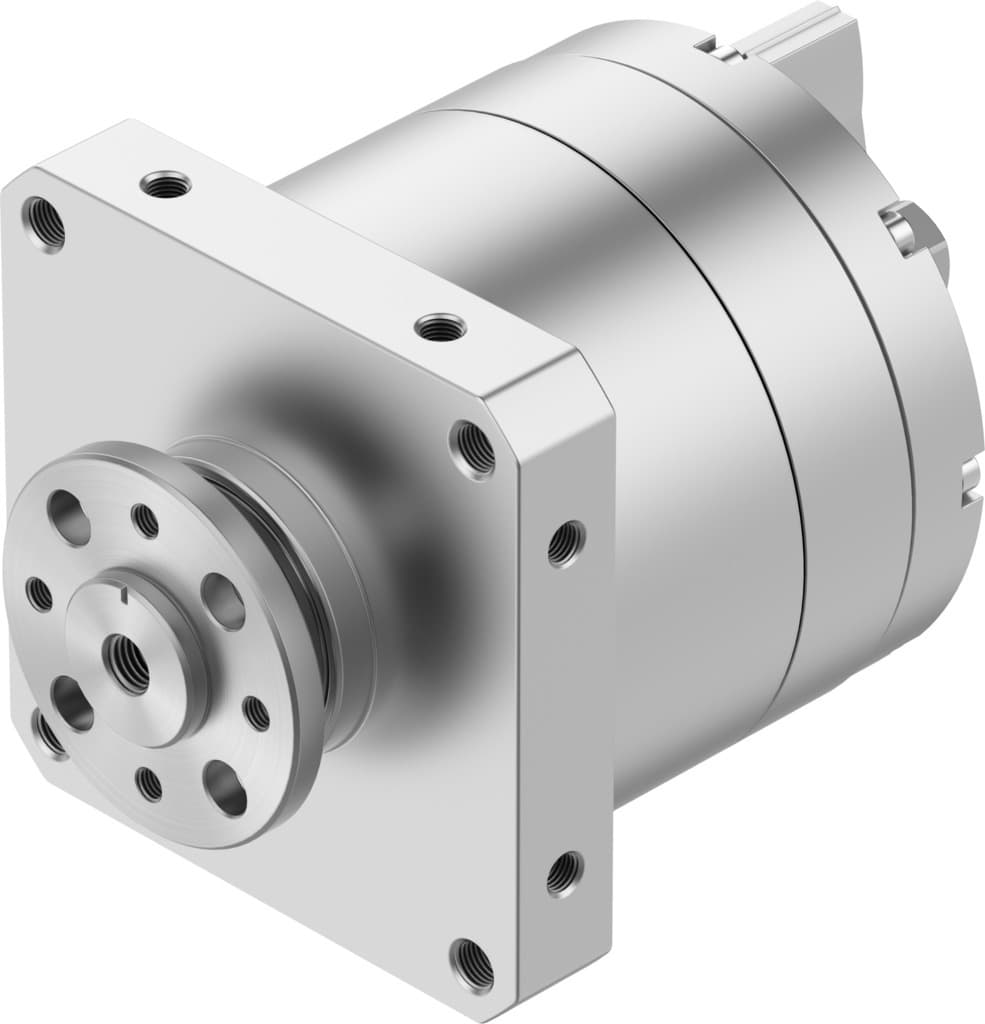

dsm-t-63-270-fw-a-b
Product ID:791
Updated: 2026/7/4
Key Features
- 1Adjust rotation from 0 to 270 degrees for precise control.
- 2Utilize elastic cushioning to ensure smooth operation and reduce wear.
- 3Operate with ISO 8573-1:2010 air for reliable performance.
- 4Construct with steel, aluminum alloy for durability in harsh conditions.
- 5Mount via G1/4 female thread for flexible installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 1.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 500N |
| Max. radial force | 500N | Theoretical torque at 6 bar | 80Nm |
| Product weight | 6305g | Type of mounting | With internal thread |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 1145133 |
Specifications may be subject to change without notice
