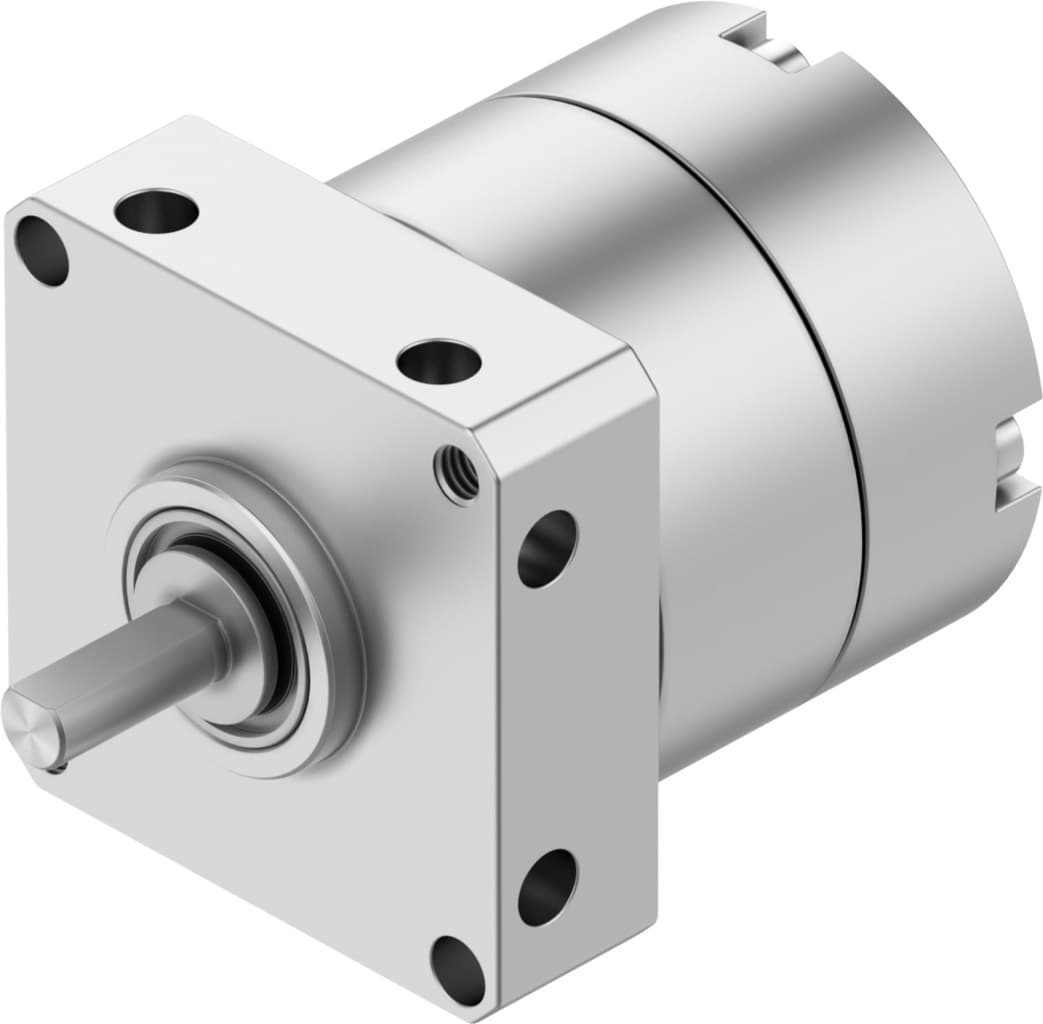

dsm-t-6-90-p
Product ID:3164
Updated: 2026/4/3
Key Features
- 1Adjust the swivel angle from 0 to 90 degrees for precise movement. 2、Utilize elastic cushioning at both ends for smooth operation and reduced wear. 3、Operate reliably at 4 to 8 bar pressure for high-torque applications. 4、Rely on the high-alloy stainless steel drive shaft for durability. 5、Ensure compatibility with ISO 8573-1:2010 [7:4:4] compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 90deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | None |
| Symbol | 00991265 | Operating pressure | 4bar 8bar |
| Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C 60°C | Theoretical torque at 6 bar | 0.3Nm |
| Permissible mass moment of inertia | 6.5E-4kgm2 | Product weight | 60g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) | Housing material | Aluminum Anodized |
| Manufacturer ID | 1564894 |
