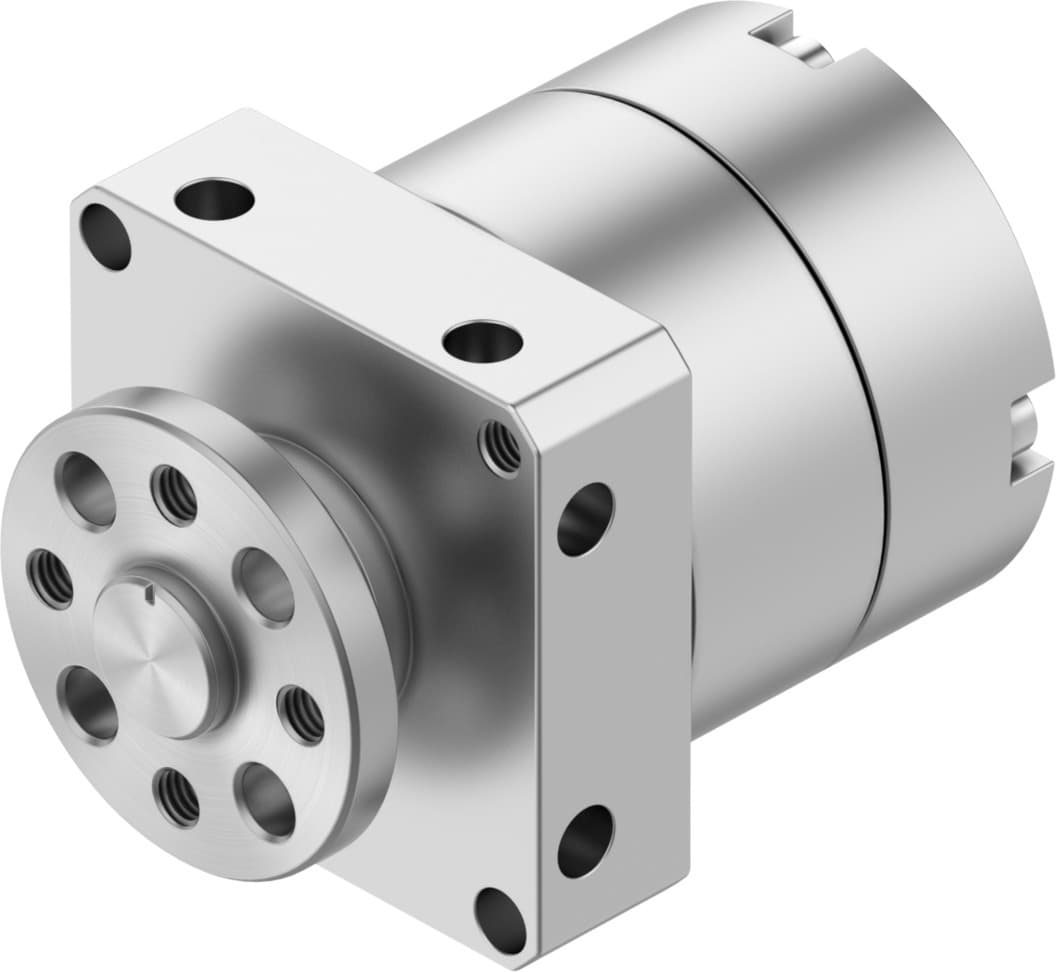

dsm-t-6-90-p-fw
Product ID:3218
Updated: 2026/7/5
Key Features
- 1Adjust the swivel angle from 0 to 90 degrees for versatile application.
- 2Utilize elastic cushioning rings to reduce wear and ensure smooth operation.
- 3Achieve 0.3 Nm torque at 8 bar for high-pressure control tasks.
- 4Operate with ISO 8573-1:2010 [7:4:4] air for reliable performance.
- 5Benefit from stainless steel, aluminum, and TPE-U construction for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 90deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | None |
| Symbol | 00991265 | Operating pressure | 4bar 8bar |
| Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C 60°C | Theoretical torque at 6 bar | 0.3Nm |
| Permissible mass moment of inertia | 6.5E-4kgm2 | Product weight | 65g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) | Housing material | Aluminum Anodized |
| Manufacturer ID | 1565425 |
Specifications may be subject to change without notice
