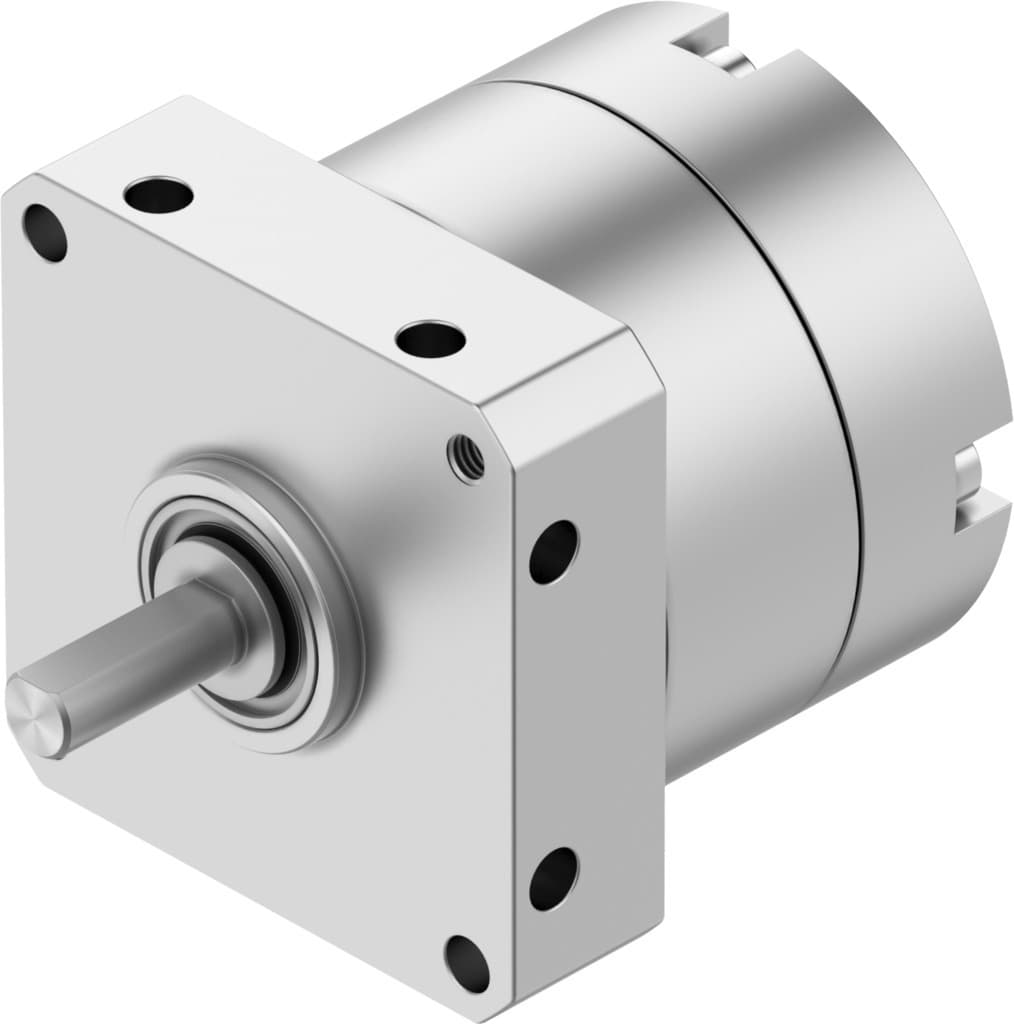

dsm-t-8-180-p
Product ID:3132
Updated: 2026/4/3
Key Features
- 1Adjust the swivel angle infinitely from 0 to 180 degrees for precise positioning. 2、Utilize elastic cushioning rings at both ends for smooth operation and reduced wear. 3、Achieve high load capacity with torques of up to 80 Nm for demanding tasks. 4、Ensure reliable operation with compressed air compatibility to ISO 8573-1:2010 standards. 5、Benefit from robust construction with high-alloy stainless steel and durable seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 180deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | None |
| Symbol | 00991265 | Operating pressure | 4bar 8bar |
| Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C 60°C | Theoretical torque at 6 bar | 0.7Nm |
| Permissible mass moment of inertia | 0.0013kgm2 | Product weight | 110g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) | Housing material | Aluminum Anodized |
| Manufacturer ID | 1564407 |
