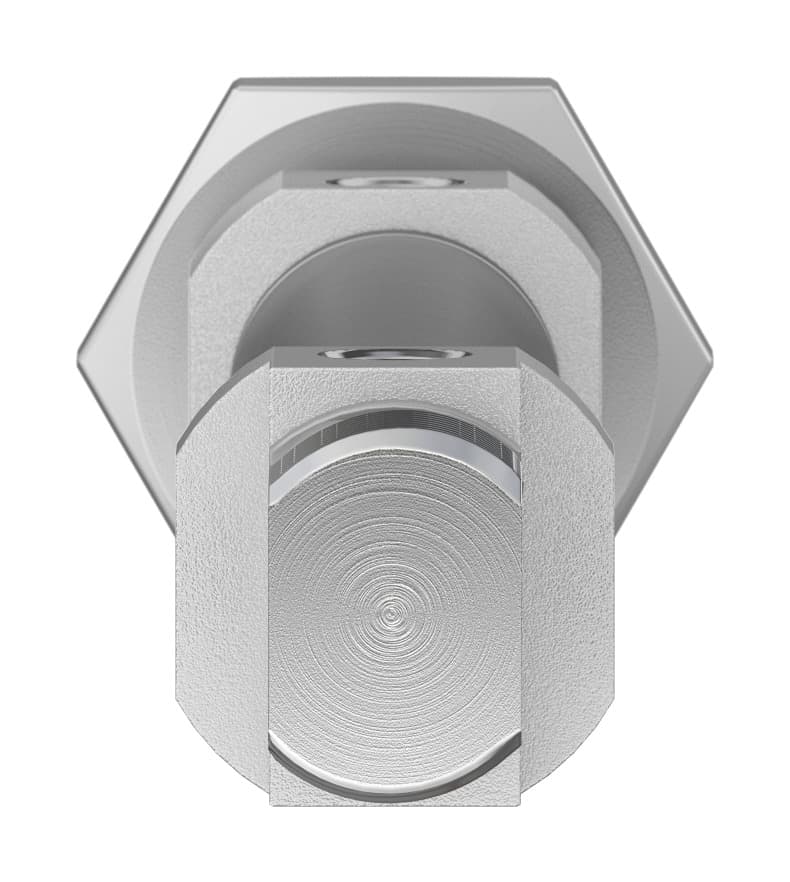

dsnu-10-50-p-a
Product ID:7020
Updated: 2026/4/3
Key Features
- 1Ensure consistent double-acting performance with 10mm bore and 50mm stroke. 2、Build durability with a high-alloy stainless steel barrel and piston rod. 3、Reduce component wear via elastic cushioning at both ends. 4、Meet ISO8573-1 air quality standards for reliable operation. 5、Connect easily with M4 male threaded rod and M5 pneumatic ports.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 50mm | Piston diameter | 10 mm |
| Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.05J |
| Theoretical force at 6 bar, retracting | 39.6N | Theoretical force at 6 bar, advancing | 47.1N |
| Moving mass at 0?mm stroke | 8.5g | Additional moving mass per 10?mm stroke | 1g |
| Basic weight with 0?mm stroke | 37.3g | Additional weight per 10?mm stroke | 2.7g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19186 |
