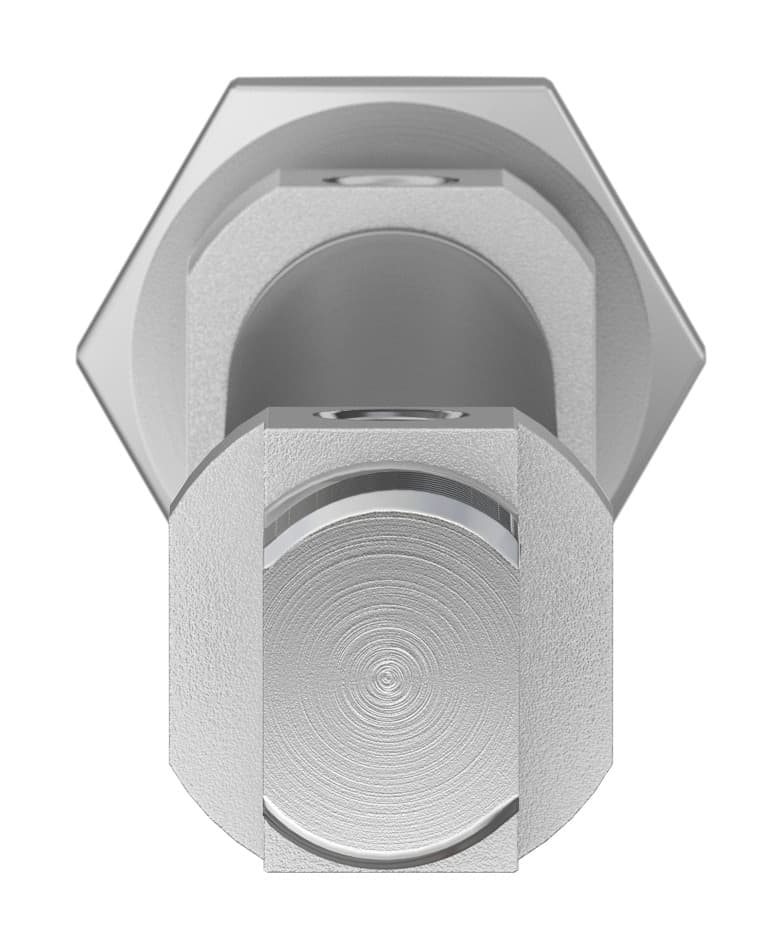

dsnu-10-80-p-a
Product ID:7021
Updated: 2026/4/3
Key Features
- 1Meet DIN ISO 6432 standards for guaranteed precision and system reliability. 2、Enable flexible mounting with or without extra components for versatile application. 3、Protect your system with elastic cushioning rings for smooth, shock-absorbing operation. 4、Integrate proximity sensing for precise detection and enhanced process control. 5、Ensure broad compatibility by conforming to ISO 6432 and CETOP RP 52 P norms.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 80mm | Piston diameter | 10 mm |
| Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.05J |
| Theoretical force at 6 bar, retracting | 39.6N | Theoretical force at 6 bar, advancing | 47.1N |
| Moving mass at 0?mm stroke | 8.5g | Additional moving mass per 10?mm stroke | 1g |
| Basic weight with 0?mm stroke | 37.3g | Additional weight per 10?mm stroke | 2.7g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19187 |
