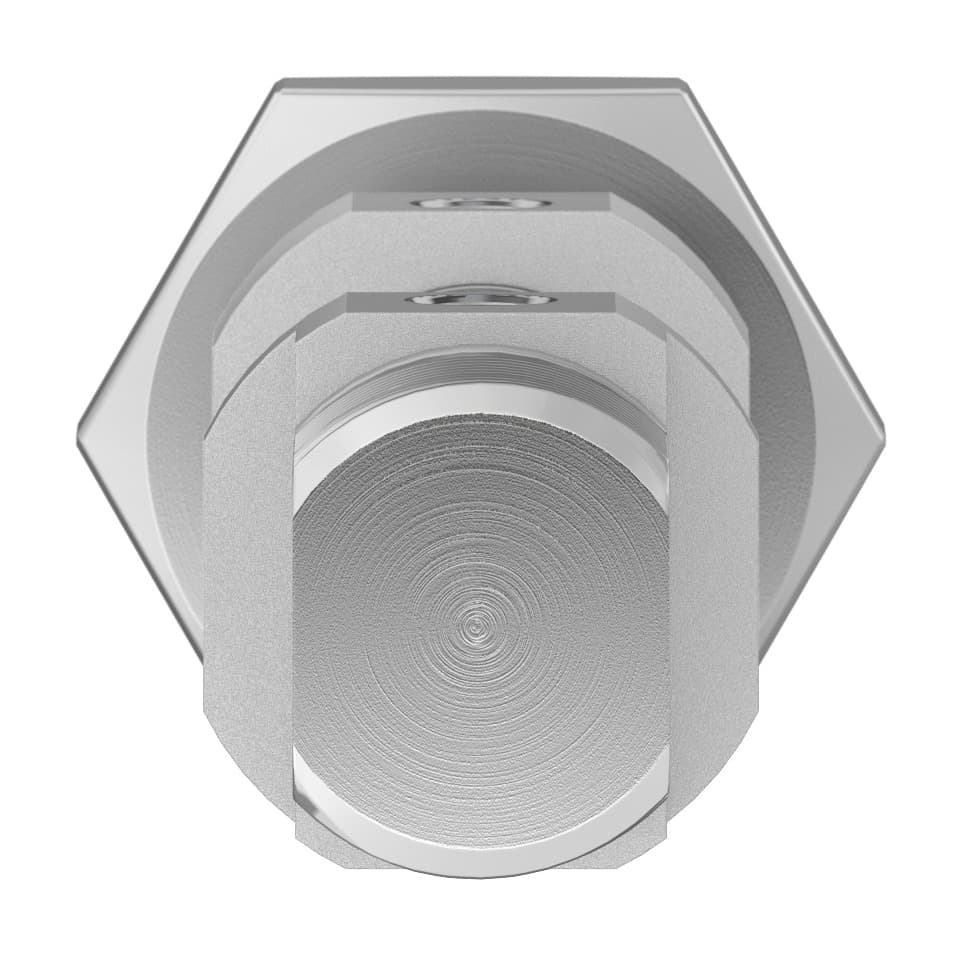

dsnu-12-10-p-a
Product ID:7023
Updated: 2026/4/3
Key Features
- 1Engineer precise automation with the DSNU-12-10-P-A cylinder. 2、Fit compact 12mm bore into tight spaces easily. 3、Operate flexibly within 0.15 to 1 MPa pressure. 4、Utilize stainless steel and aluminum for moderate corrosion resistance. 5、Ensure smooth operation with integrated elastic cushioning.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 12 mm |
| Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
| Theoretical force at 6 bar, retracting | 50.9N | Theoretical force at 6 bar, advancing | 67.9N |
| Moving mass at 0?mm stroke | 18.5g | Additional moving mass per 10?mm stroke | 2g |
| Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 4g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19189 |
