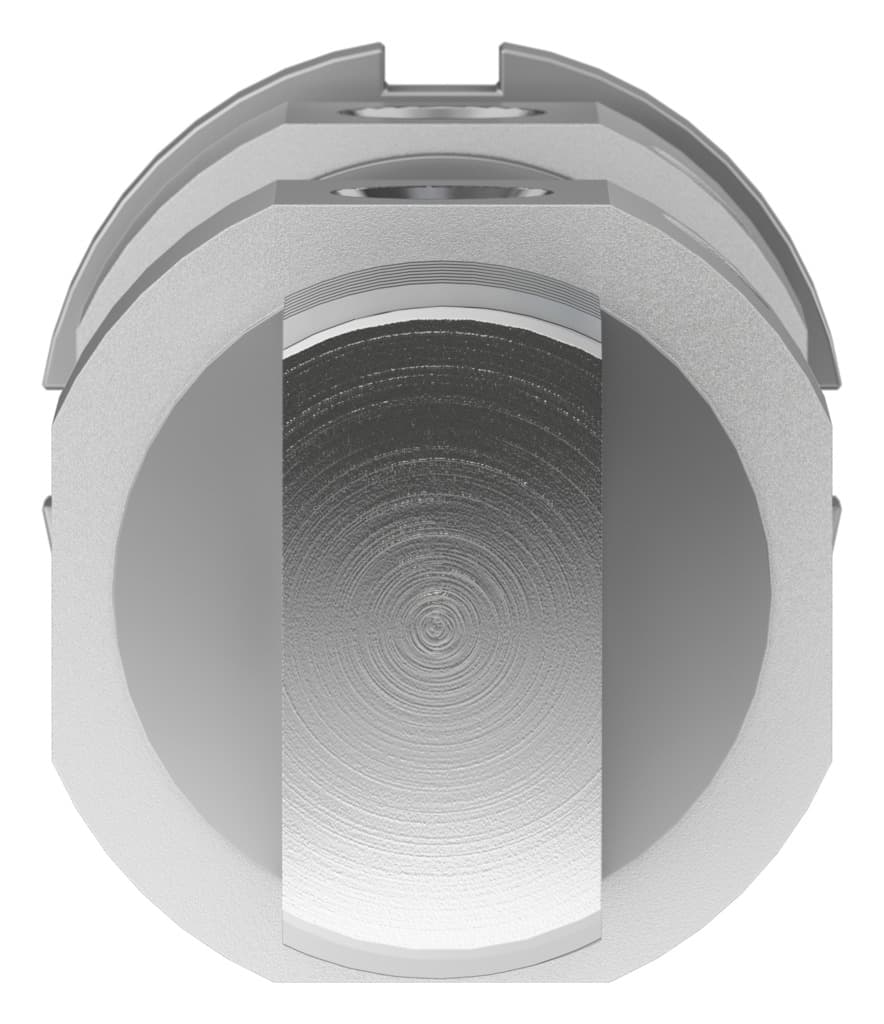

dsnu-1 5/8"- -ppv-a
Product ID:11633
Updated: 2026/7/13
Key Features
- 1Meet high demands for running characteristics and load capacity.
- 2Customize damping with adjustable air cushioning at both ends.
- 3Access versatile mounting and sensing accessories.
- 4Resist corrosion in industrial coolants and lubricants.
- 5Tailor stroke lengths up to 20 inches for flexibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 508mm | Piston diameter | 1 5/8" |
| Piston rod thread | 1/2-20 UNF-2A | Based on norm | ISO 6431 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.70001J | Cushioning length | 18.034mm |
| Theoretical force at 6 bar, retracting | 563.412N | Theoretical force at 6 bar, advancing | 669.813N |
| Moving mass at 0?mm stroke | 230.004g | Additional weight per 10?mm stroke | 15.989g |
| Type of mounting | With accessories | Pneumatic connection | 1/4 NPT |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548539 |
Specifications may be subject to change without notice
