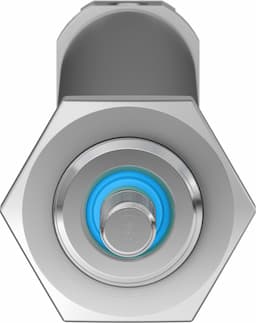

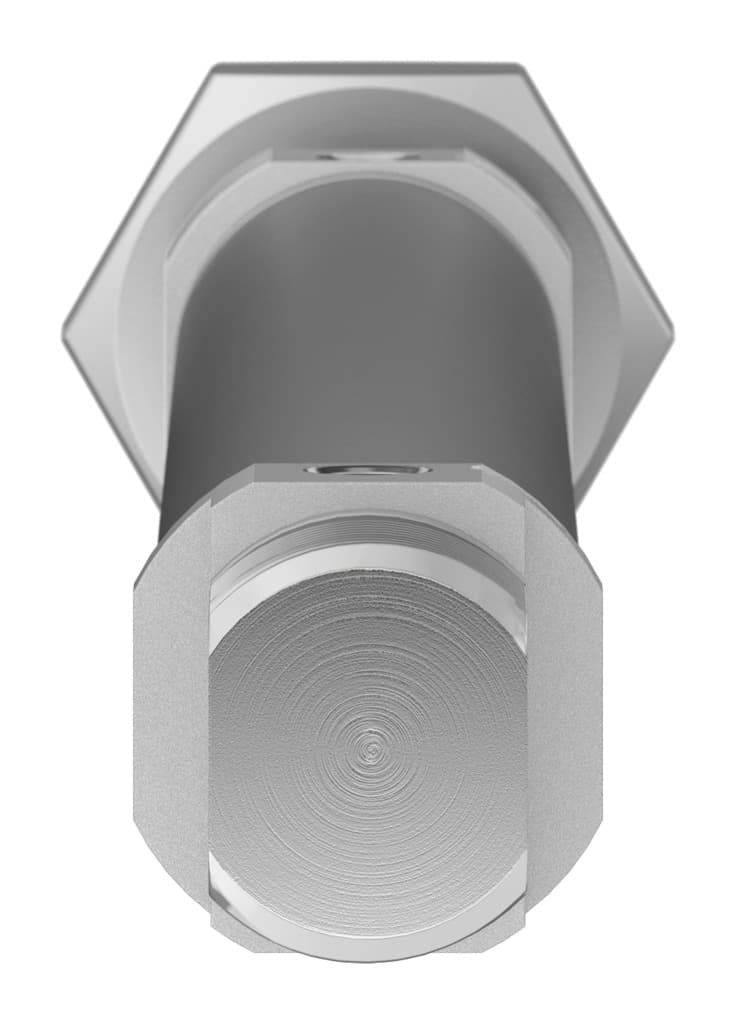

dsnu-16-150-ppv-a
Product ID:6826
Updated: 2026/7/7
Key Features
- 1Meet ISO 6432 standards for guaranteed compatibility and reliability.
- 2Deliver robust motion with a 16mm piston diameter and 150mm stroke.
- 3Customize damping via adjustable pneumatic cushioning at both ends.
- 4Construct with high-alloy stainless steel for superior corrosion resistance.
- 5Support operating pressures from 1 to 10 bar for versatile applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 150mm | Piston diameter | 16 mm |
| Piston rod thread | M6 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
| Cushioning length | 12mm | Theoretical force at 6 bar, retracting | 103.7N |
| Theoretical force at 6 bar, advancing | 120.6N | Moving mass at 0?mm stroke | 23g |
| Additional moving mass per 10?mm stroke | 2g | Basic weight with 0?mm stroke | 89.9g |
| Additional weight per 10?mm stroke | 4.6g | Type of mounting | With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 1908273 |
Specifications may be subject to change without notice
