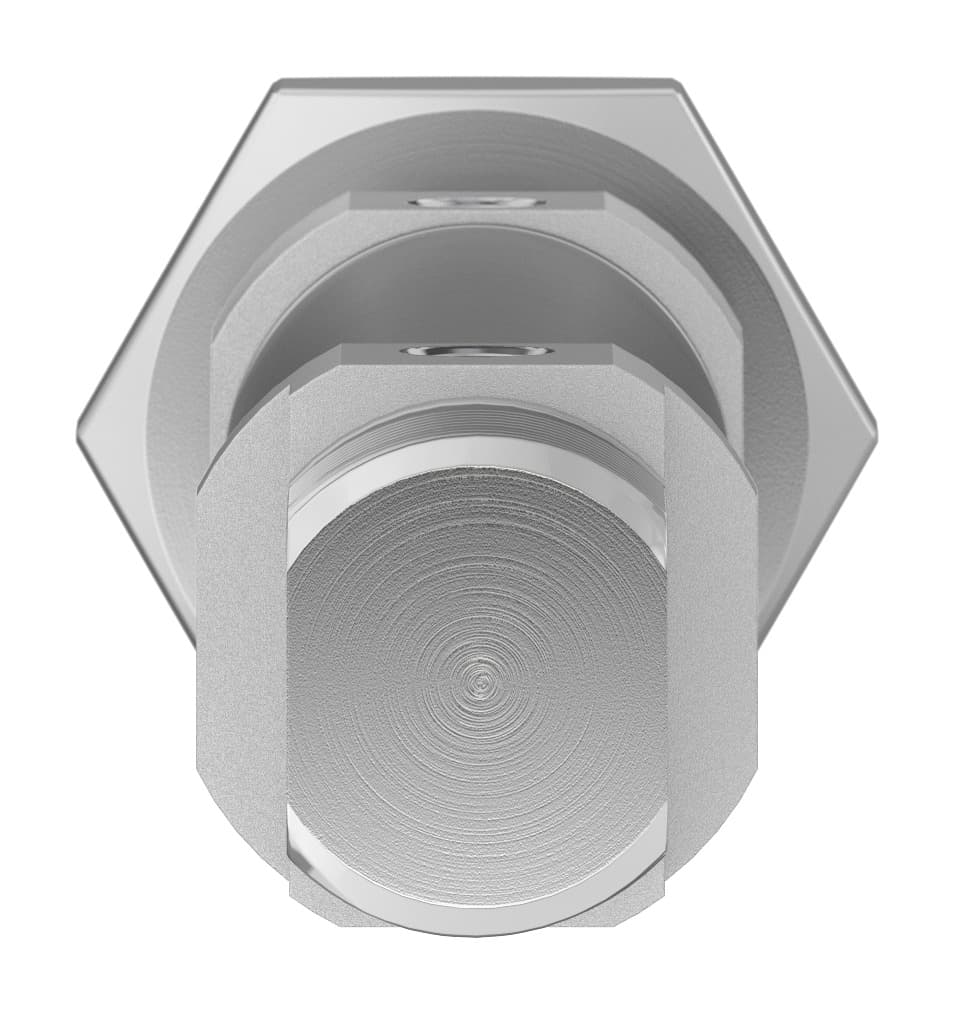

dsnu-16-30-pps-a
Product ID:6830
Updated: 2026/7/7
Key Features
- 1Utilize a 30mm stroke and 16mm piston diameter for versatile industrial applications.
- 2Benefit from self-adjusting pneumatic cushioning for smooth operation and reduced wear.
- 3Ensure system compatibility with ISO 6432 and CETOP RP 52 P standards.
- 4Operate flexibly within a 1 to 10 bar pressure range in double-acting mode.
- 5Rely on high-alloy stainless steel construction for durability and corrosion resistance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 16 mm |
| Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Variants | Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.15J | Cushioning length | 12mm |
| Theoretical force at 6 bar, retracting | 103.7N | Theoretical force at 6 bar, advancing | 120.6N |
| Moving mass at 0?mm stroke | 23g | Additional moving mass per 10?mm stroke | 2g |
| Basic weight with 0?mm stroke | 89.9g | Additional weight per 10?mm stroke | 4.6g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908277 |
Specifications may be subject to change without notice
