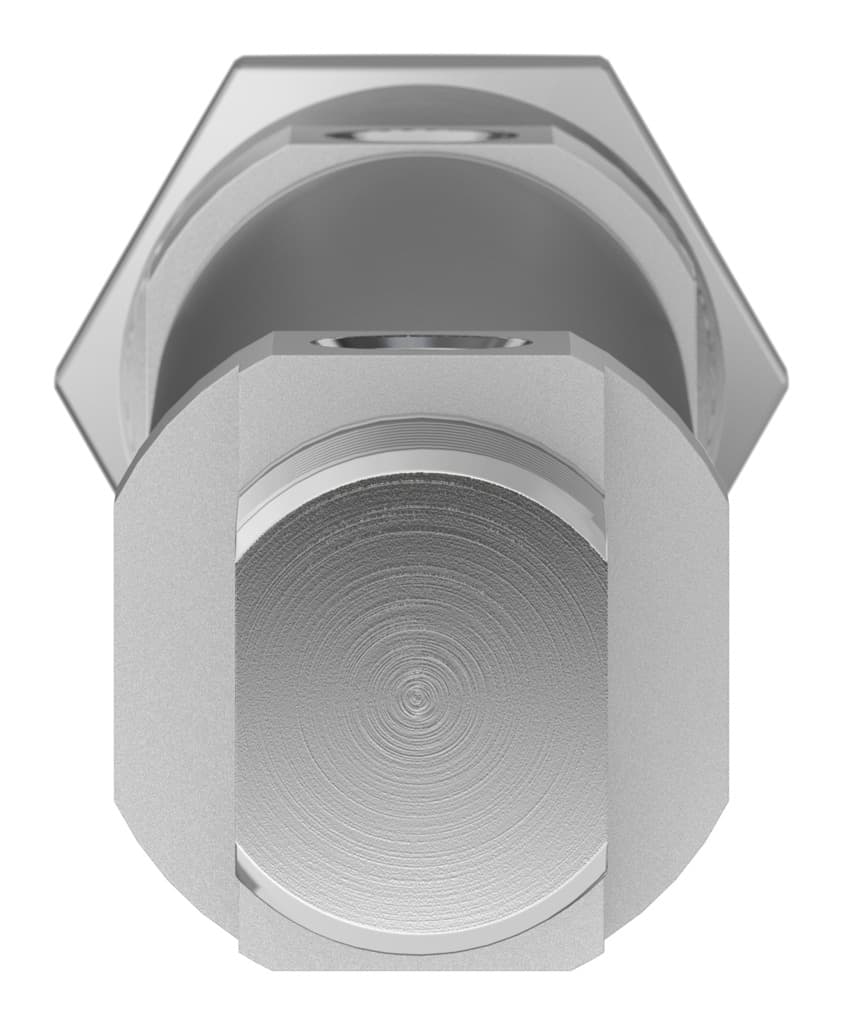

dsnu-1"- -p-a
Product ID:11606
Updated: 2026/4/3
Key Features
- 1Reduce noise and vibration with adjustable air cushioning at both ends. 2、Enable contactless position detection via a built-in sensing magnet. 3、Ensure interchangeability with ISO 6432 metric mounting standards. 4、Achieve excellent running performance with a high-alloy steel piston rod. 5、Perform double-acting linear motion with dual compressed air ports.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 508mm | Piston diameter | 1" |
| Piston rod thread | 3/8-24 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.30004J | Theoretical force at 6 bar, retracting | 220.098N |
| Theoretical force at 6 bar, advancing | 262N | Moving mass at 0?mm stroke | 70.988g |
| Additional weight per 10?mm stroke | 6.01g | Type of mounting | With accessories |
| Pneumatic connection | 1/8 NPT | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 548487 |
Specifications may be subject to change without notice
