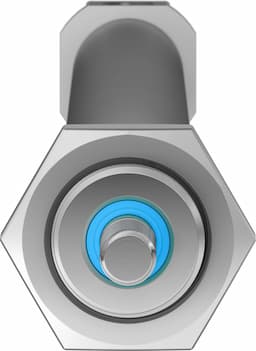

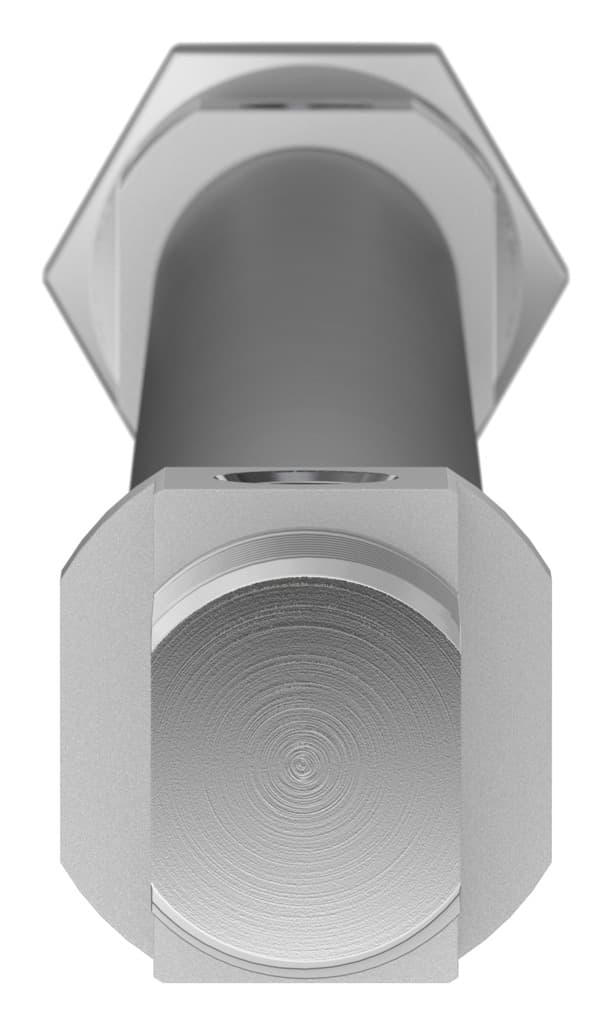

dsnu-20-300-p-a
Product ID:7053
Updated: 2026/7/19
Key Features
- 1Utilize a 300mm stroke and 20mm piston diameter for versatile applications.
- 2Feature an M8 piston rod thread and elastic cushioning for smooth operation.
- 3Operate with compressed air per ISO 8573-1:2010 for reliable double-acting performance.
- 4Integrate proximity sensing for precise position detection and control.
- 5Construct with high-quality materials like aluminum alloy and stainless steel for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 300mm | Piston diameter | 20 mm |
| Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
| Theoretical force at 6 bar, retracting | 158.3N | Theoretical force at 6 bar, advancing | 188.5N |
| Moving mass at 0?mm stroke | 44g | Additional moving mass per 10?mm stroke | 4g |
| Basic weight with 0?mm stroke | 186.8g | Additional weight per 10?mm stroke | 7.2g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19217 |
Specifications may be subject to change without notice
