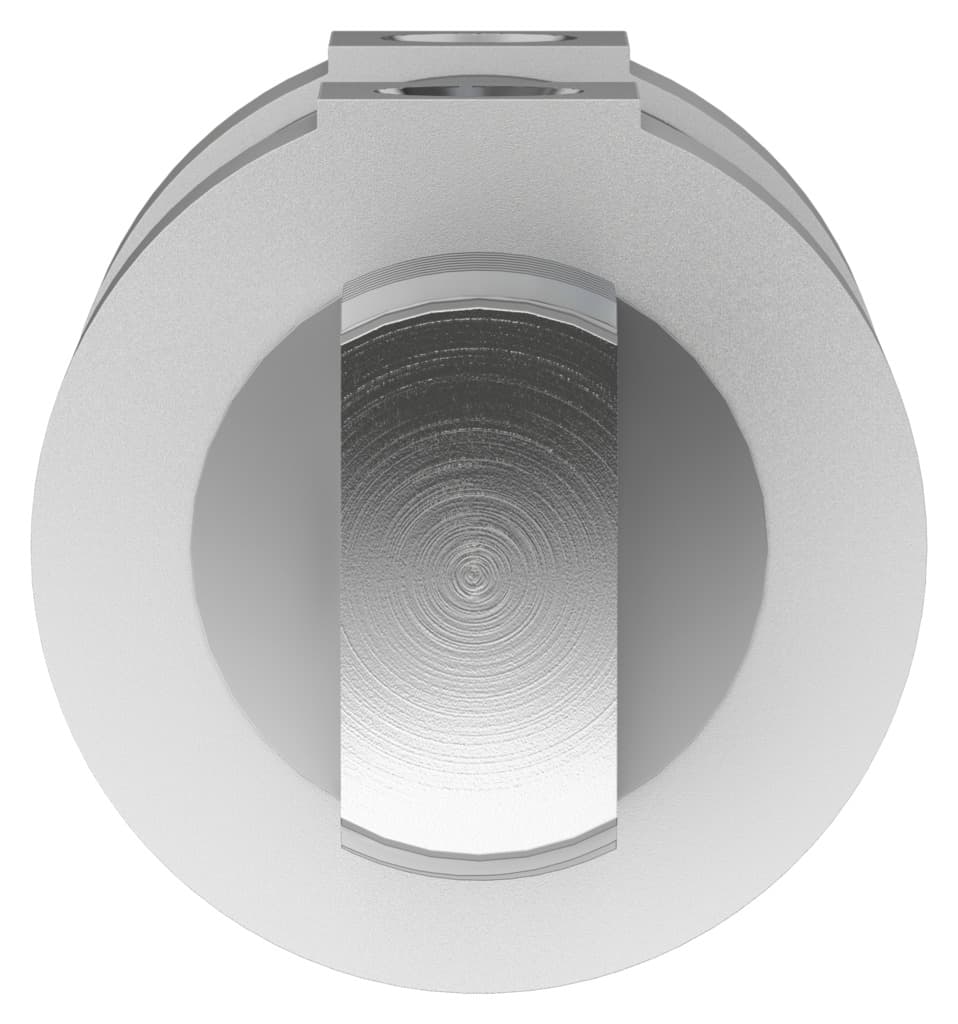

dsnu-2 1/2"- -p-a
Product ID:11610
Updated: 2026/7/13
Key Features
- 1Offer versatile stroke lengths from 0.4 to 20 inches.
- 2Provide robust performance with a 2.5-inch piston diameter.
- 3Feature elastic cushioning rings for smooth operation and reduced wear.
- 4Ensure high-quality air supply per ISO 8573-1:2010 standards.
- 5Enhance durability with compatibility for lubricated operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 508mm | Piston diameter | 2 1/2" |
| Piston rod thread | 5/8-18 UNF-2A | Based on norm | ISO 6431 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1.29996J | Theoretical force at 6 bar, retracting | 1496.293N |
| Theoretical force at 6 bar, advancing | 1663.902N | Moving mass at 0?mm stroke | 459.015g |
| Additional weight per 10?mm stroke | 25.005g | Type of mounting | With accessories |
| Pneumatic connection | 3/8 NPT | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 548491 |
Specifications may be subject to change without notice
