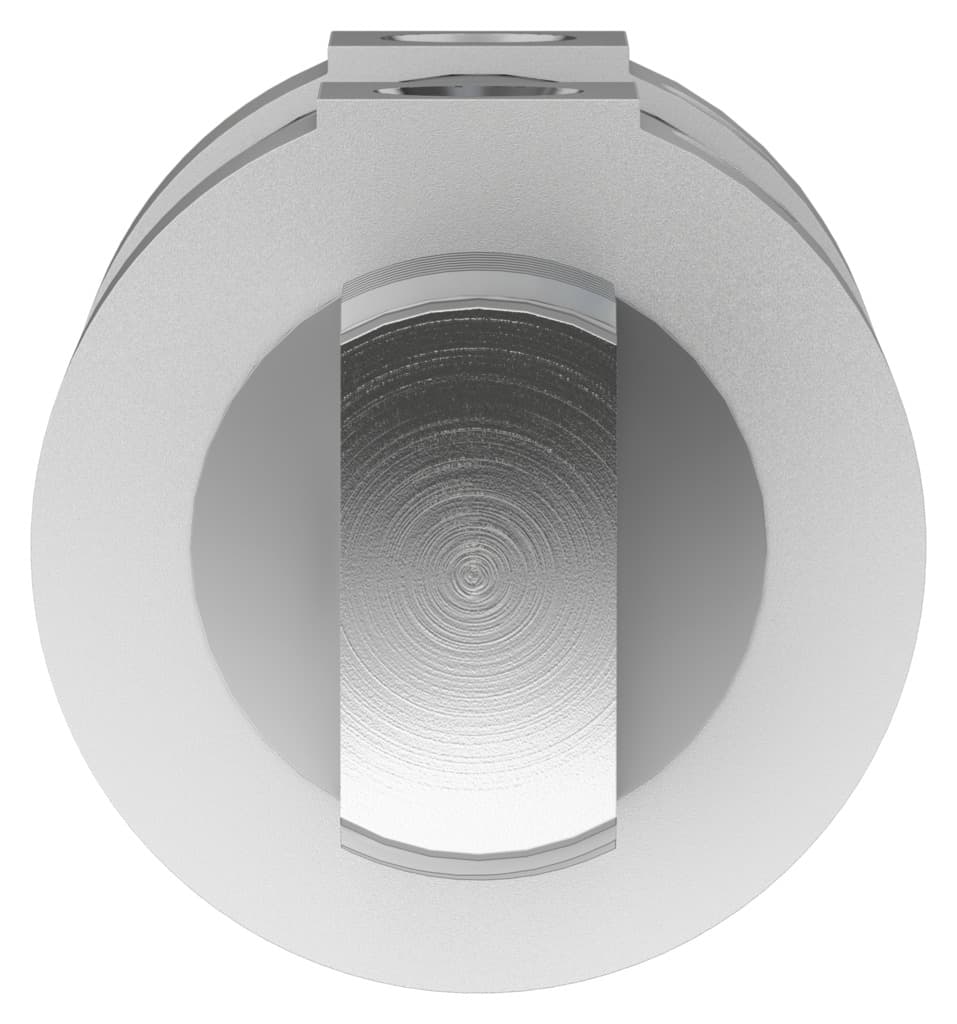

dsnu-2 1/2"- -ppv-a
Product ID:11635
Updated: 2026/4/3
Key Features
- 1Feature adjustable air cushioning at both ends for smooth, quiet operation. 2、Handle medium to heavy loads in high-speed applications reliably. 3、Utilize a high-alloy steel piston rod for durability and low weight. 4、Integrate easily into systems with ISO 15552 standard compatibility. 5、Enable precise position detection with optional magnetic sensors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 508mm | Piston diameter | 2 1/2" |
| Piston rod thread | 5/8-18 UNF-2A | Based on norm | ISO 6431 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1.29996J | Cushioning length | 21.082mm |
| Theoretical force at 6 bar, retracting | 1496.293N | Theoretical force at 6 bar, advancing | 1663.902N |
| Moving mass at 0?mm stroke | 459.015g | Additional weight per 10?mm stroke | 25.005g |
| Type of mounting | With accessories | Pneumatic connection | 3/8 NPT |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548541 |
