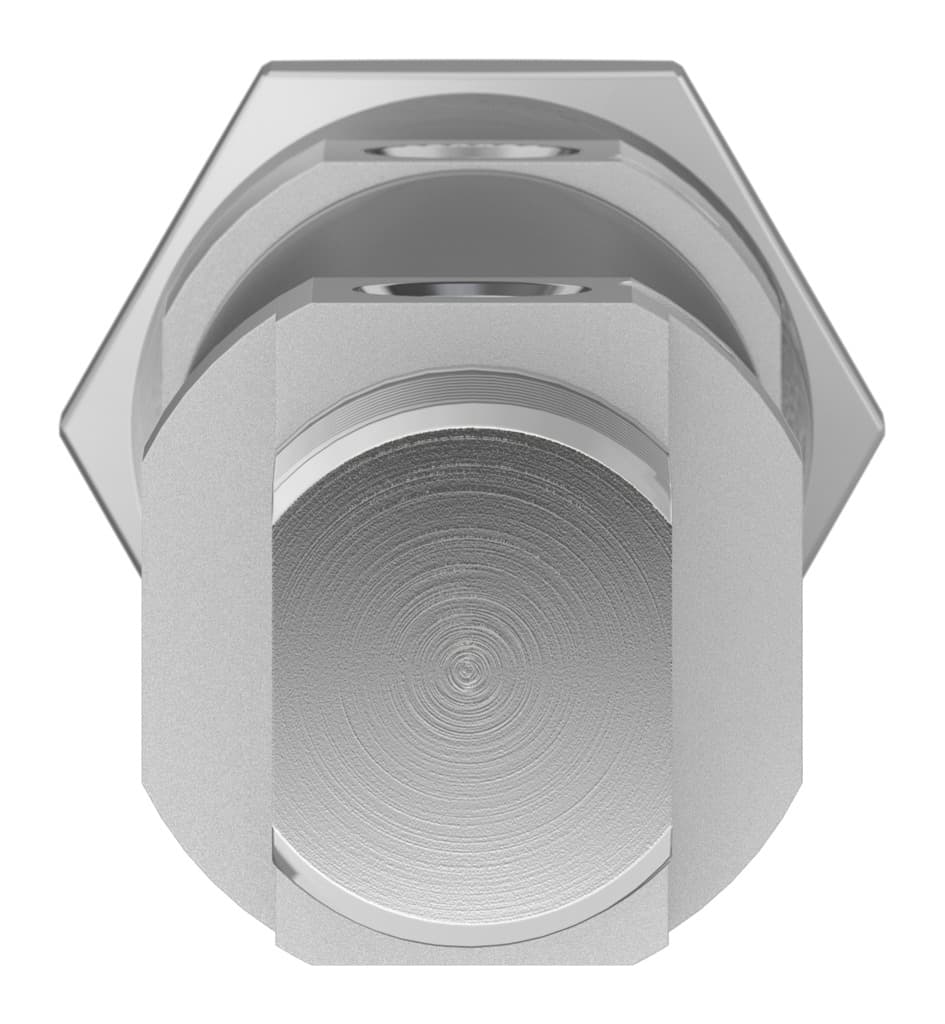

dsnu-25-40-ppv-a
Product ID:7126
Updated: 2026/4/3
Key Features
- 1Adjust pneumatic cushioning at both ends for smooth motion. 2、Utilize high-alloy stainless steel for corrosion resistance. 3、Install in any mounting position for versatile integration. 4、Conform to CETOP RP 52 P and ISO 6432 standards. 5、Operate with a 40 mm stroke and 25 mm piston diameter.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
| Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 247.4N |
| Theoretical force at 6 bar, advancing | 294.5N | Moving mass at 0?mm stroke | 71g |
| Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 238g |
| Additional weight per 10?mm stroke | 11g | Type of mounting | With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 19245 |
Specifications may be subject to change without notice
