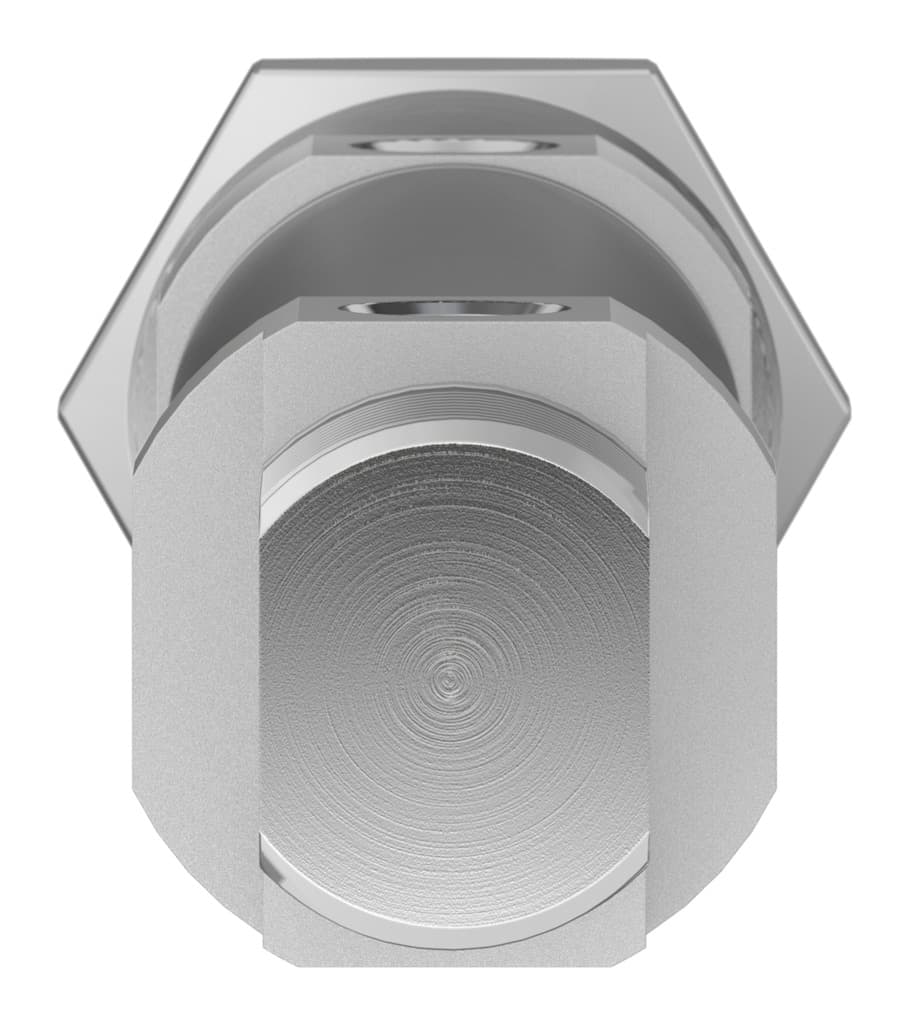

dsnu-25-60-p-a
Product ID:6863
Updated: 2026/4/3
Key Features
- 1Enable precise proximity sensing for reliable detection. 2、Incorporate elastic cushioning rings to reduce wear. 3、Select from versatile mounting options for easy integration. 4、Ensure compliance with DIN ISO 6432 standards. 5、Operate at up to 10 bar for high-pressure applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 60mm | Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
| Theoretical force at 6 bar, retracting | 247.4N | Theoretical force at 6 bar, advancing | 294.5N |
| Moving mass at 0?mm stroke | 71g | Additional moving mass per 10?mm stroke | 6g |
| Basic weight with 0?mm stroke | 238g | Additional weight per 10?mm stroke | 11g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908309 |
Specifications may be subject to change without notice
