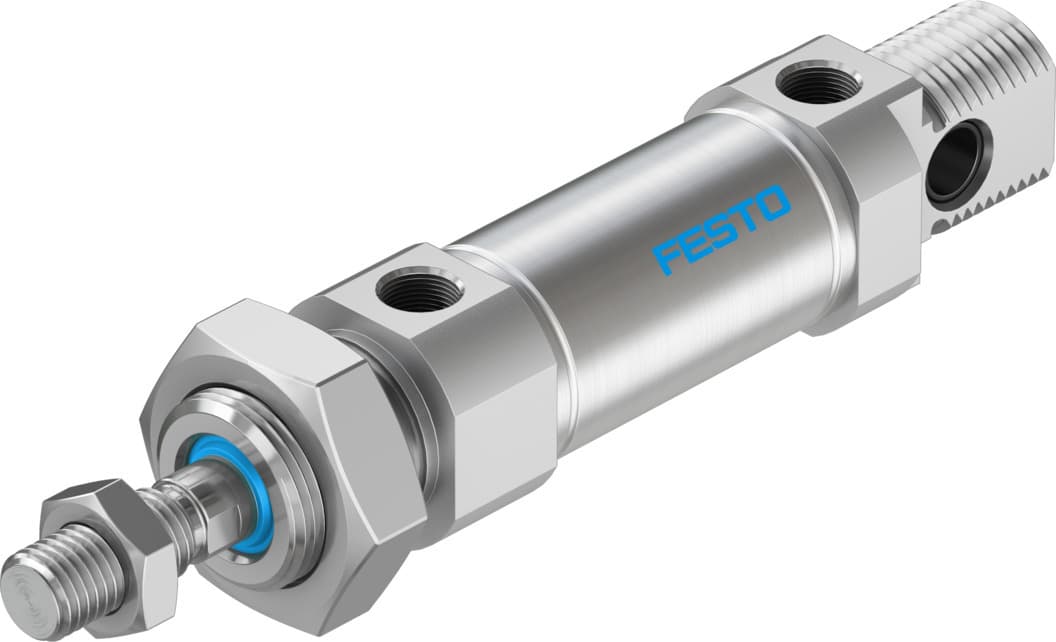

dsnu-25- -f1a-
Product ID:477
Updated: 2026/4/3
Key Features
- 1Utilize a high-alloy stainless steel piston rod for superior corrosion resistance. 2、Employ pneumatic cushioning at both ends to minimize impact and wear. 3、Operate reliably across 0.1 to 1 MPa pressure for consistent double-acting performance. 4、Apply in copper/zinc/nickel-free environments like lithium-ion battery production. 5、Comply with ISO 6432, ATEX, and UKEX directives for hazardous area safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 500mm | Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends Self-adjusting pneumatic end-position cushioning Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Extended external thread piston rod Internal thread on piston rod Special thread on piston rod Piston rod with external thread shortened at one end Extended piston rod Axial supply port Lateral supply port Through piston rod |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Cushioning length | 17mm |
| Theoretical force at 6 bar, retracting | 247.4N | Theoretical force at 6 bar, advancing | 294.5N |
| Moving mass at 0?mm stroke | 71g | Additional moving mass per 10?mm stroke | 6g |
| Basic weight with 0?mm stroke | 238g | Additional weight per 10?mm stroke | 11g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 8149447 |
