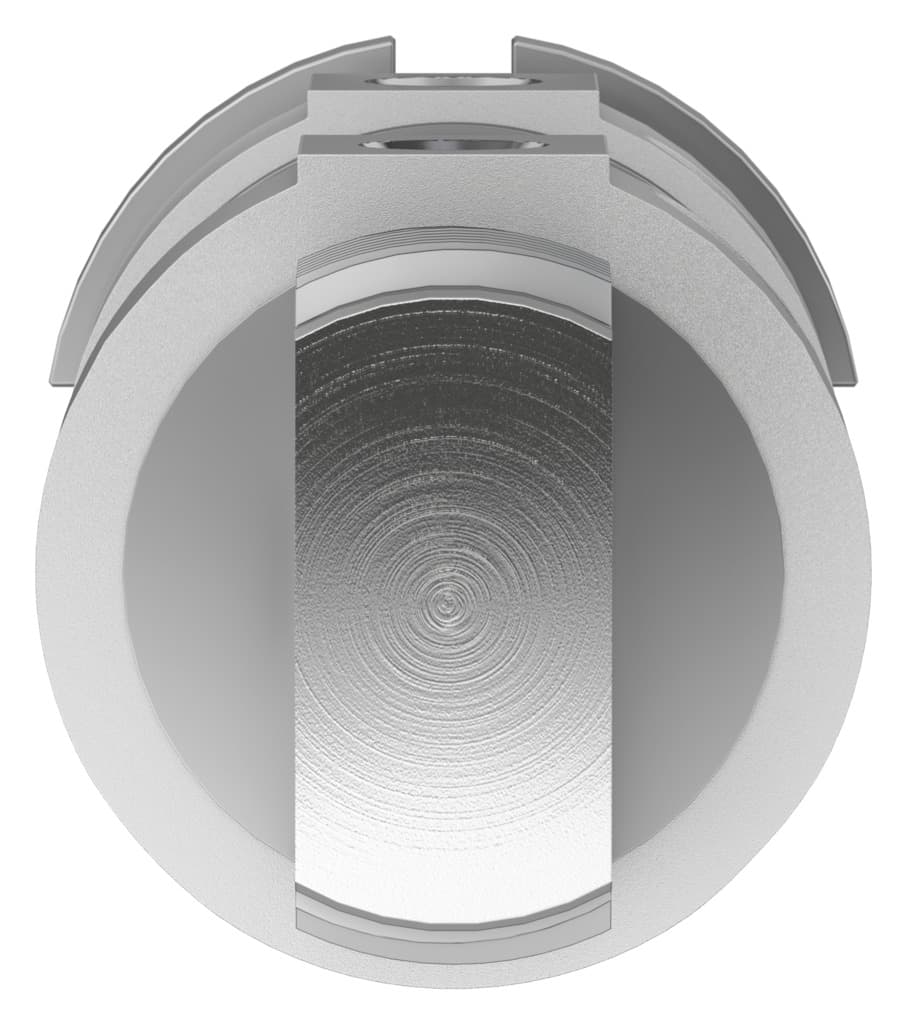

dsnu-2"- -ppv-a
Product ID:11634
Updated: 2026/4/3
Key Features
- 1Feature a 2-inch stroke for precise movement control. 2、Offer robust performance with a 1.5-inch piston diameter. 3、Ensure smooth operation via elastic cushioning rings. 4、Provide versatile mounting options for easy integration. 5、Conform to ISO standards for reliable quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 508mm | Piston diameter | 2" |
| Piston rod thread | 5/8-18 UNF-2A | Based on norm | ISO 6431 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1.00005J | Cushioning length | 20.066mm |
| Theoretical force at 6 bar, retracting | 880.392N | Theoretical force at 6 bar, advancing | 1048.09N |
| Moving mass at 0?mm stroke | 413.003g | Additional weight per 10?mm stroke | 25.005g |
| Type of mounting | With accessories | Pneumatic connection | 1/4 NPT |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548540 |
Specifications may be subject to change without notice
