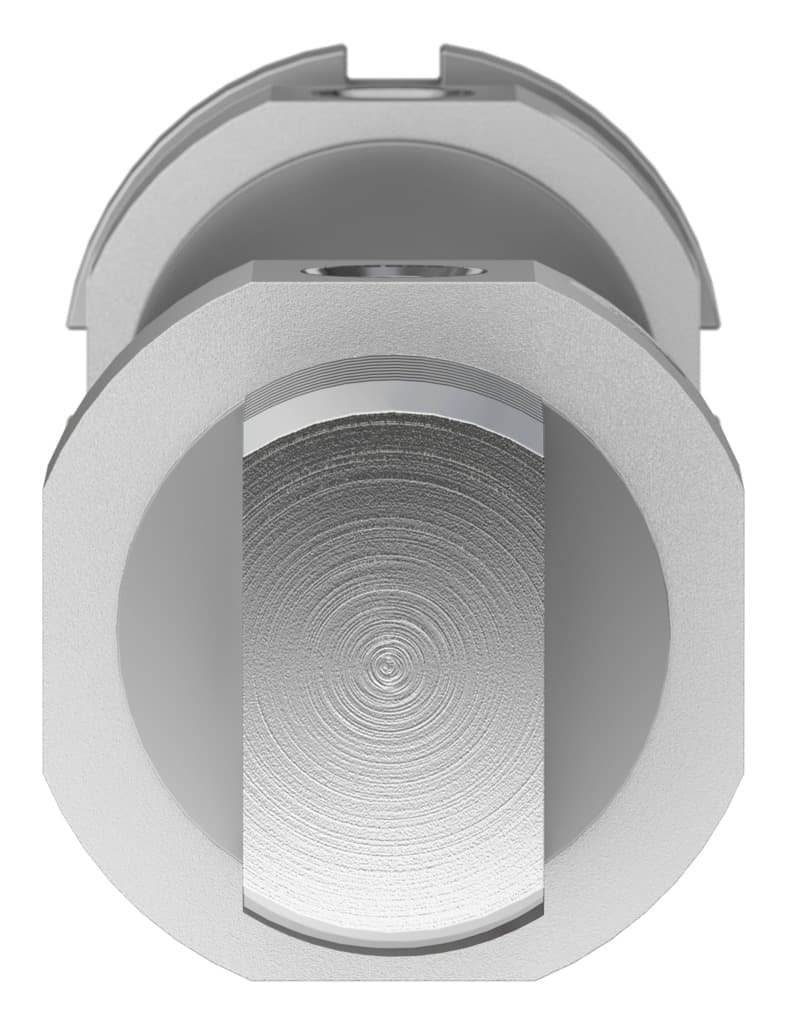

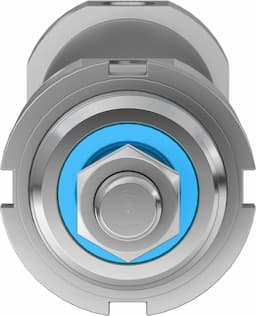

dsnu-32-125-ppv-a
Product ID:7630
Updated: 2026/4/4
Key Features
- 1Deliver precise motion with a 32mm bore and 125mm stroke. 2、Reduce impact and wear using adjustable pneumatic cushioning. 3、Enable accurate position sensing for sensor integration. 4、Integrate easily into diverse systems with versatile mounting. 5、Ensure reliable operation in clean or corrosive environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 125mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Cushioning length | 14mm | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 482.5N | Moving mass | 234g |
| Product weight | 565g | Type of mounting | With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 196025 |
Specifications may be subject to change without notice
