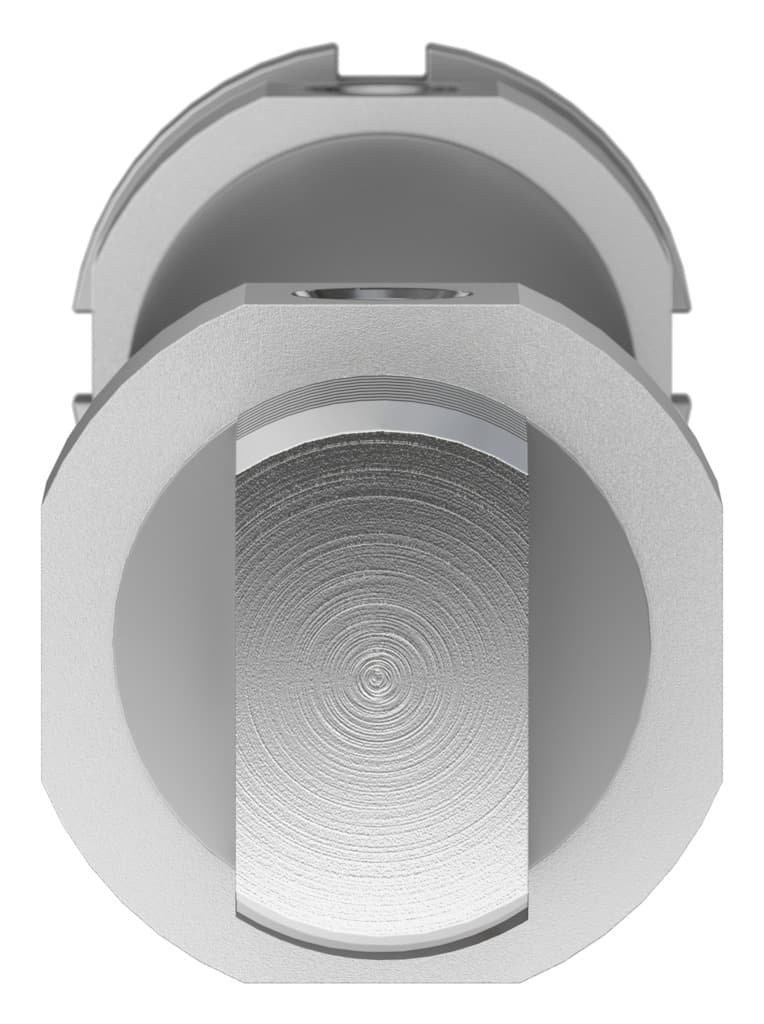

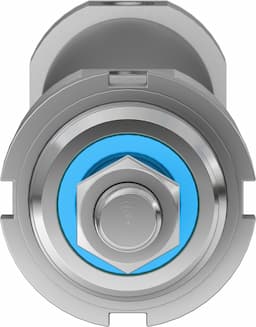

dsnu-32-160-p-a
Product ID:7591
Updated: 2026/4/4
Key Features
- 1Utilize a 32mm piston diameter and 160mm stroke for versatile industrial applications. 2、Reduce wear with elastic cushioning rings at both ends for smooth operation. 3、Operate flexibly with 0.1-1 MPa pressure range in double-acting mode. 4、Ensure high performance using compressed air meeting ISO 8573-1:2010. 5、Integrate easily with a compact 619g weight and 265g moving mass.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 160mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 482.5N |
| Moving mass | 265g | Product weight | 619g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 195986 |
Specifications may be subject to change without notice
