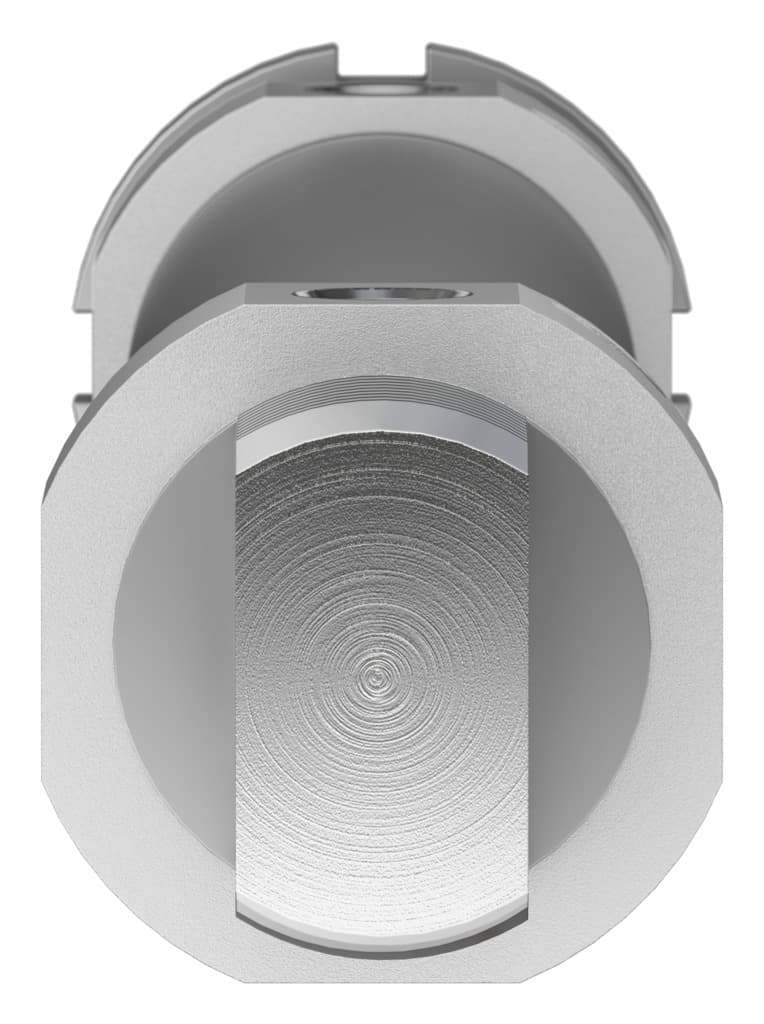

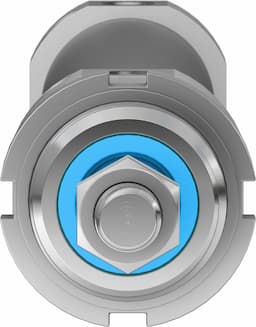

dsnu-32-160-ppv-a
Product ID:7631
Updated: 2026/4/4
Key Features
- 1Feature adjustable pneumatic cushioning at both ends for smooth motion control. 2、Operate in double-acting mode for precise bidirectional movement. 3、Construct with high-alloy stainless steel for superior corrosion resistance. 4、Enable position detection via proximity switch for easy system integration. 5、Support a pressure range from 1 to 10 bar for versatile applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 160mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Cushioning length | 14mm | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 482.5N | Moving mass | 265g |
| Product weight | 619g | Type of mounting | With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 196026 |
Specifications may be subject to change without notice
