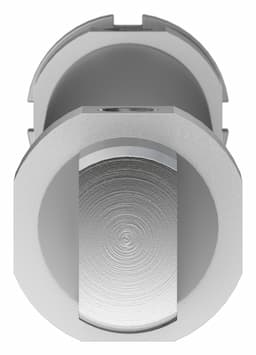

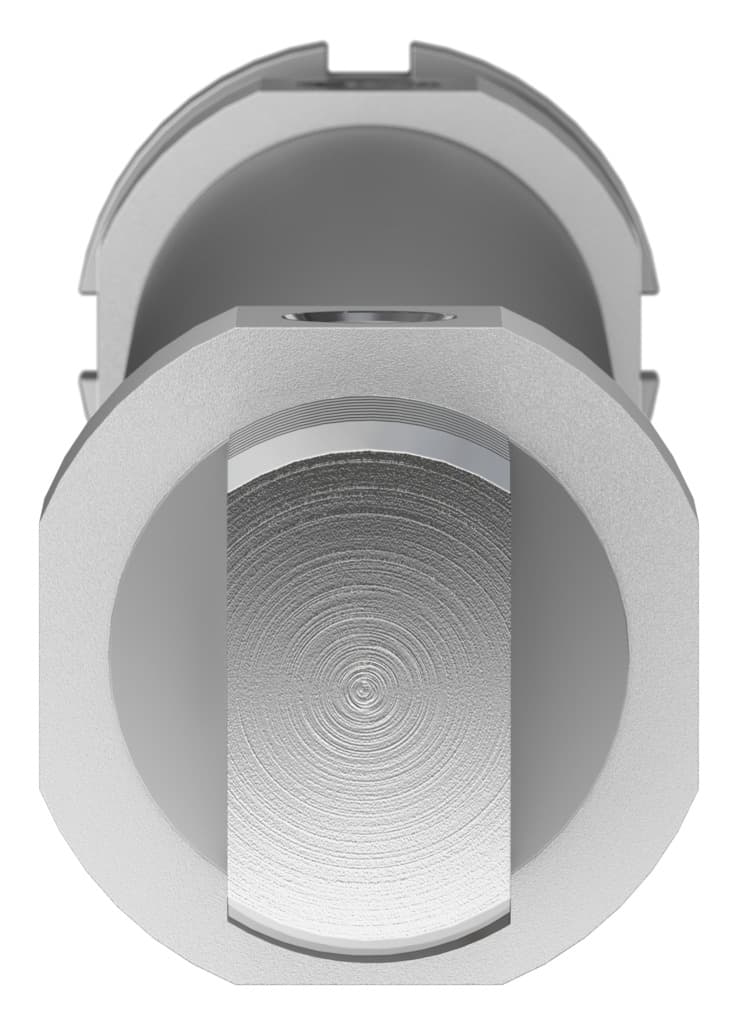

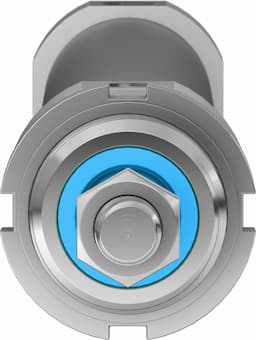

dsnu-32-200-p-a
Product ID:7592
Updated: 2026/4/4
Key Features
- 1Deliver precise motion with a 200 mm stroke and 32 mm bore. 2、Ensure smooth operation using adjustable pneumatic cushioning at both ends. 3、Resist corrosion in harsh environments with high-alloy stainless steel. 4、Simplify integration via standard M10x1.25 piston rod thread. 5、Support versatile mounting with multiple position and air connection options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 200mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 482.5N |
| Moving mass | 301g | Product weight | 680g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 195987 |
Specifications may be subject to change without notice
