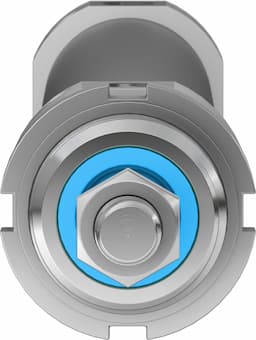

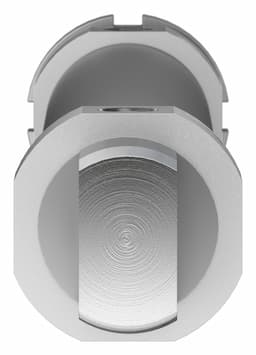

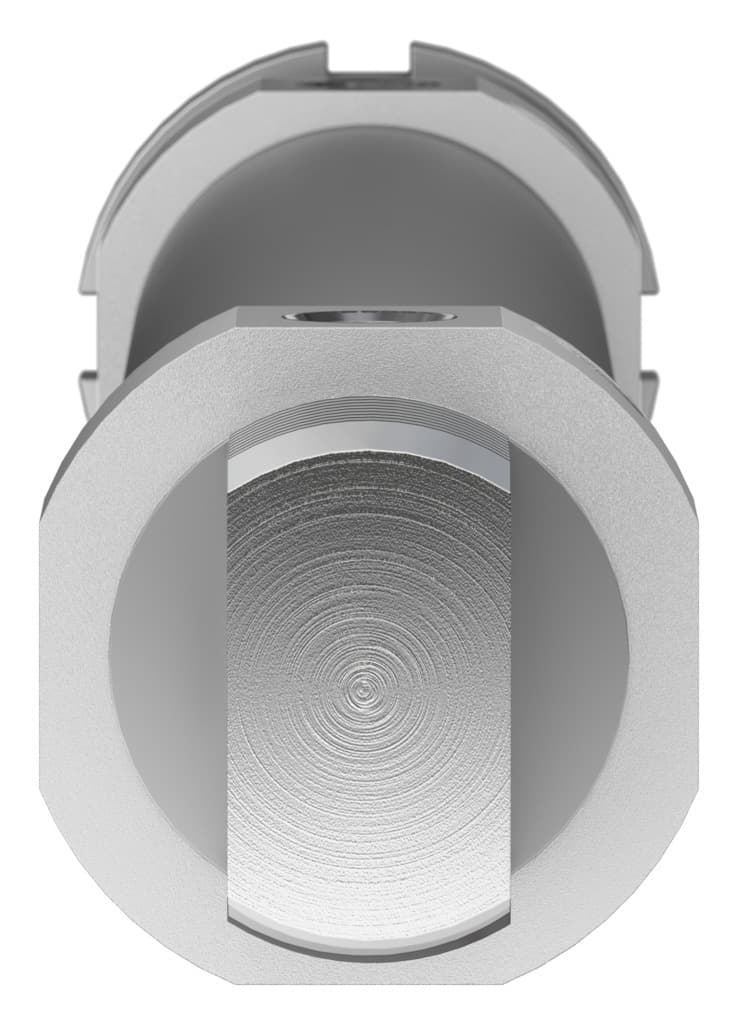

dsnu-32-200-ppv-a
Product ID:7632
Updated: 2026/4/4
Key Features
- 1Adjust pneumatic cushioning at both ends for smooth, controlled motion. 2、Operate in double-acting mode for equal force in both stroke directions. 3、Withstand moderate corrosion stress with a CRC 2 resistance rating. 4、Enable precise position detection with built-in proximity sensors. 5、Function in cleanrooms (ISO 14644-1 Class 6) with a 1-10 bar pressure range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 200mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Cushioning length | 14mm | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 482.5N | Moving mass | 301g |
| Product weight | 680g | Type of mounting | With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 196027 |
Specifications may be subject to change without notice
