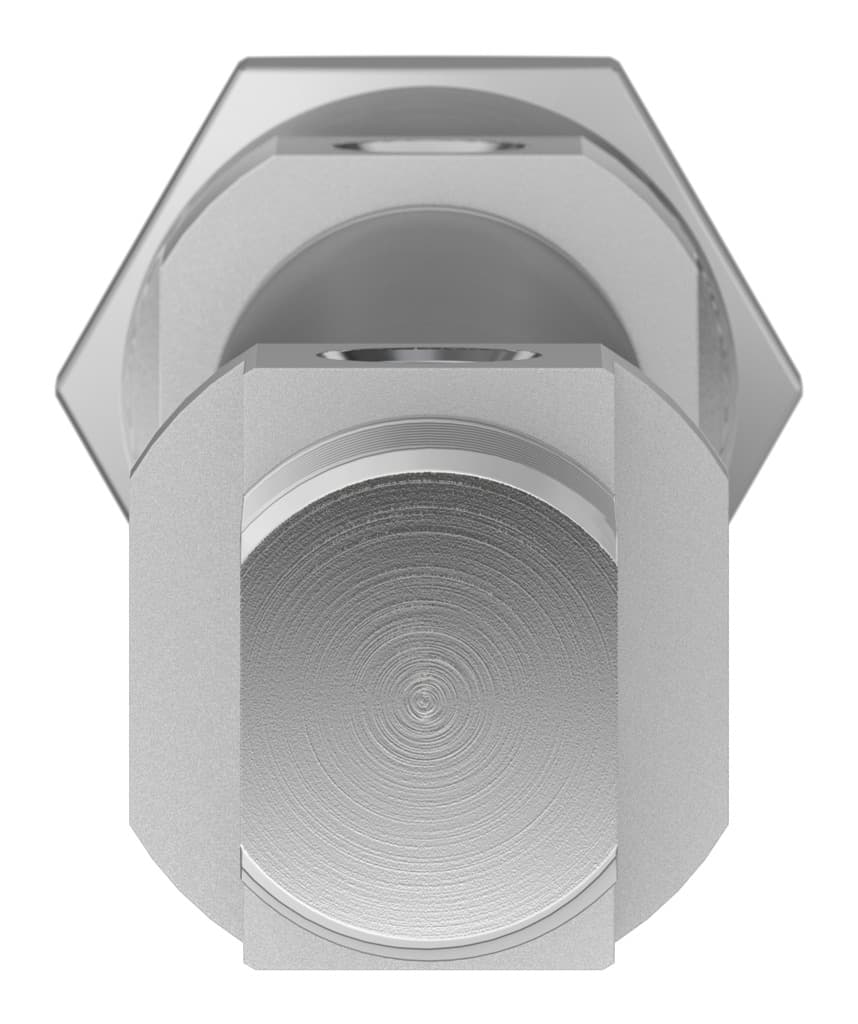

dsnu-3/4"- -p-a
Product ID:11605
Updated: 2026/4/3
Key Features
- 1Operate double-acting single-ended for versatile industrial applications. 2、Adjust cushioning at both ends to ensure smooth movement. 3、Utilize the built-in magnet for secure holding or lifting. 4、Conform to ISO6432 for guaranteed compatibility and interchangeability. 5、Select from various stroke lengths to meet specific needs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 304.8mm | Piston diameter | 3/4" |
| Piston rod thread | 5/16-24 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.19998J | Theoretical force at 6 bar, retracting | 140.831N |
| Theoretical force at 6 bar, advancing | 167.698N | Moving mass at 0?mm stroke | 43.999g |
| Additional weight per 10?mm stroke | 3.997g | Type of mounting | With accessories |
| Pneumatic connection | 1/8 NPT | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 548486 |
Specifications may be subject to change without notice
