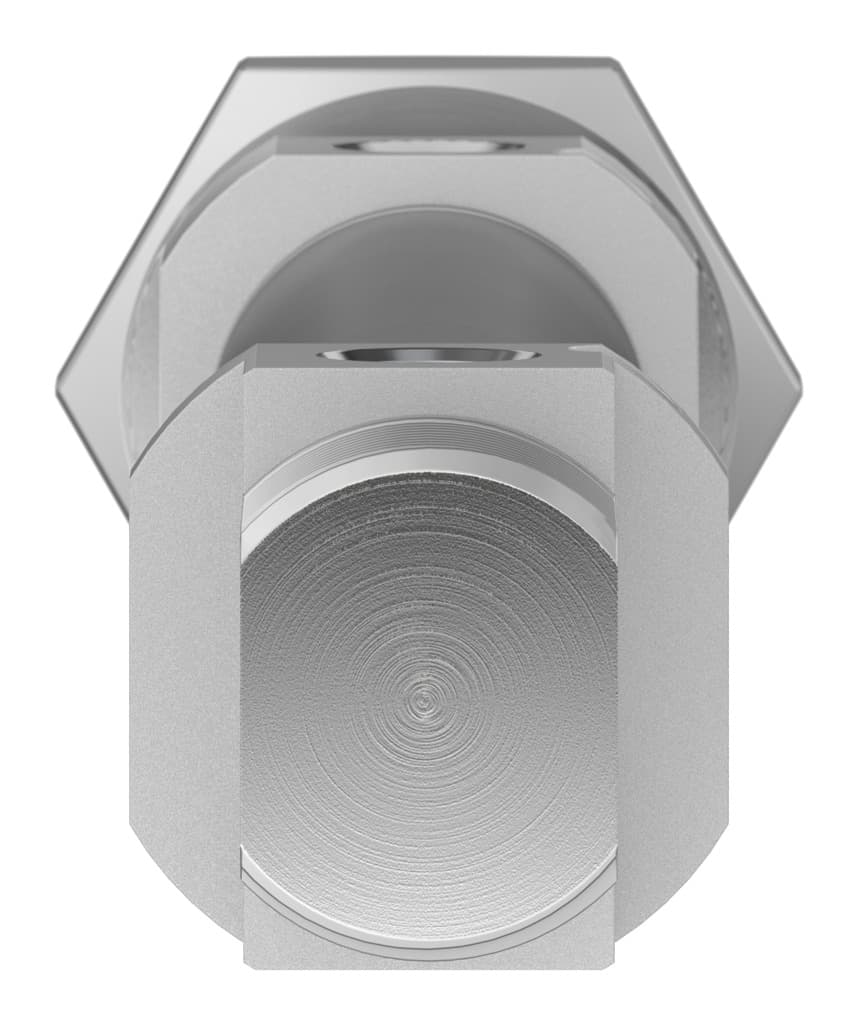

dsnu-3/4"- -ppv-a
Product ID:11630
Updated: 2026/4/3
Key Features
- 1Provide versatile stroke lengths from 10.16 mm to 304.8 mm. 2、Ensure robust performance with a precise 3/4" piston diameter. 3、Enhance durability using elastic cushioning rings at both ends. 4、Operate reliably with compressed air per ISO 8573-1:2010. 5、Offer high corrosion resistance with RoHS-compliant stainless steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 304.8mm | Piston diameter | 3/4" |
| Piston rod thread | 5/16-24 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.19998J | Cushioning length | 14.986mm |
| Theoretical force at 6 bar, retracting | 140.831N | Theoretical force at 6 bar, advancing | 167.698N |
| Moving mass at 0?mm stroke | 43.999g | Additional weight per 10?mm stroke | 3.997g |
| Type of mounting | With accessories | Pneumatic connection | 1/8 NPT |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548536 |
Specifications may be subject to change without notice
