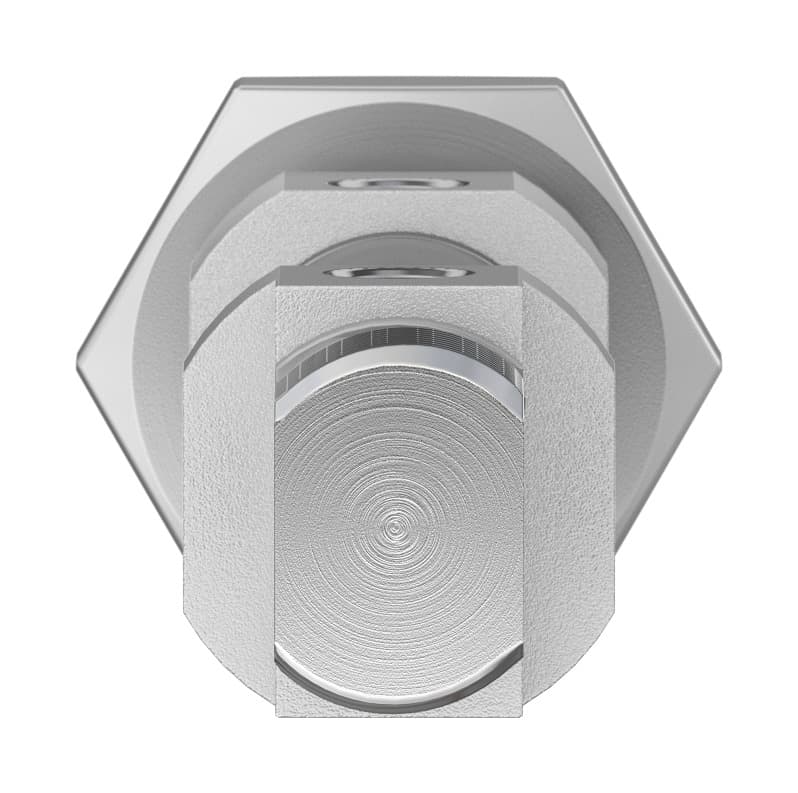

dsnu-3/8"- -p-a
Product ID:11603
Updated: 2026/4/3
Key Features
- 1Design based on the ISO6432 series for reliable operation. 2、Feature self-adjusting cushioning at both ends for optimal performance. 3、Equip with a built-in magnet for easy position sensing. 4、Offer a wide range of variants for customized applications. 5、Construct with high-quality materials for a long service life.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 101.6mm | Piston diameter | 3/8" |
| Piston rod thread | 6-32 UNC-2A | Based on norm | ISO 6432 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.05003J | Theoretical force at 6 bar, retracting | 35.23N |
| Theoretical force at 6 bar, advancing | 41.902N | Moving mass at 0?mm stroke | 8.505g |
| Additional weight per 10?mm stroke | 0.992g | Type of mounting | With accessories |
| Pneumatic connection | 10-32 UNF-2B | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 548483 |
Specifications may be subject to change without notice
