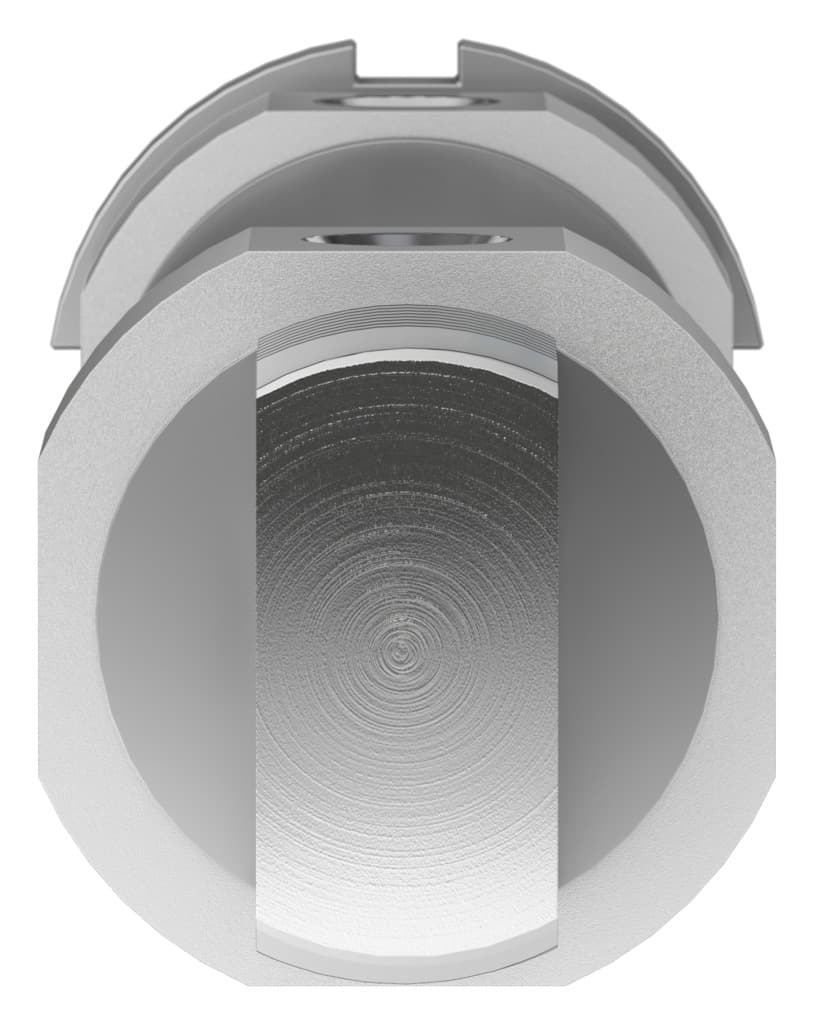

dsnu-40-100-p-a
Product ID:7599
Updated: 2026/4/4
Key Features
- 1Achieve precise movement with a 100 mm stroke and 40 mm piston diameter. 2、Ensure smooth operation using elastic cushioning rings at both ends. 3、Mount flexibly in any position with double-acting operation. 4、Operate reliably with compressed air meeting ISO 8573-1:2010. 5、Withstand harsh conditions from -20°C to 80°C and CRC 2 corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 100mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 633.3N |
| Theoretical force at 6 bar, advancing | 752.9N | Moving mass | 390g |
| Product weight | 901g | Type of mounting | With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 195994 |
