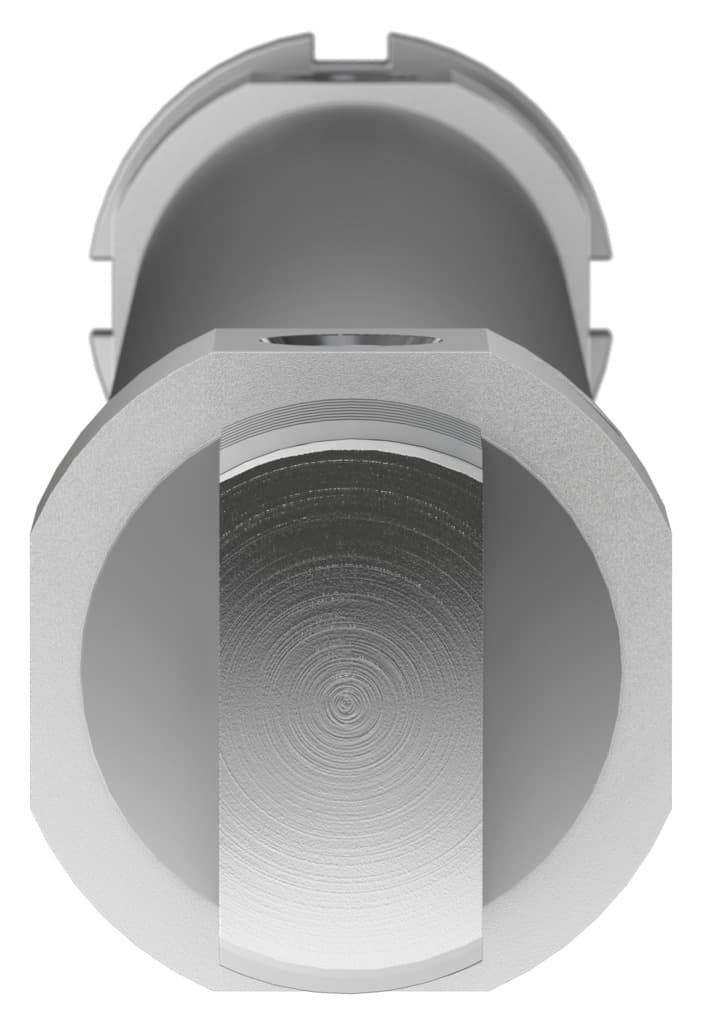

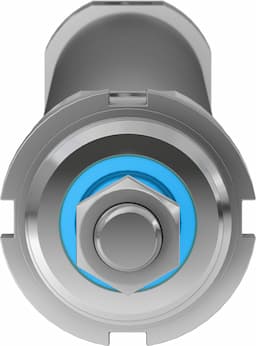

dsnu-40-320-ppv-a
Product ID:7644
Updated: 2026/4/4
Key Features
- 1Achieve precise 320mm stroke control with a 40mm piston diameter. 2、Reduce wear using adjustable pneumatic cushioning at both ends. 3、Install flexibly in any assembly position for diverse applications. 4、Operate reliably from 1 to 10 bar per ISO 8573-1:2010. 5、Ensure durability with high-alloy stainless steel barrel and rod.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 320mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 18mm |
| Theoretical force at 6 bar, retracting | 633.3N | Theoretical force at 6 bar, advancing | 752.9N |
| Moving mass | 742g | Product weight | 1429g |
| Type of mounting | With accessories | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196039 |
