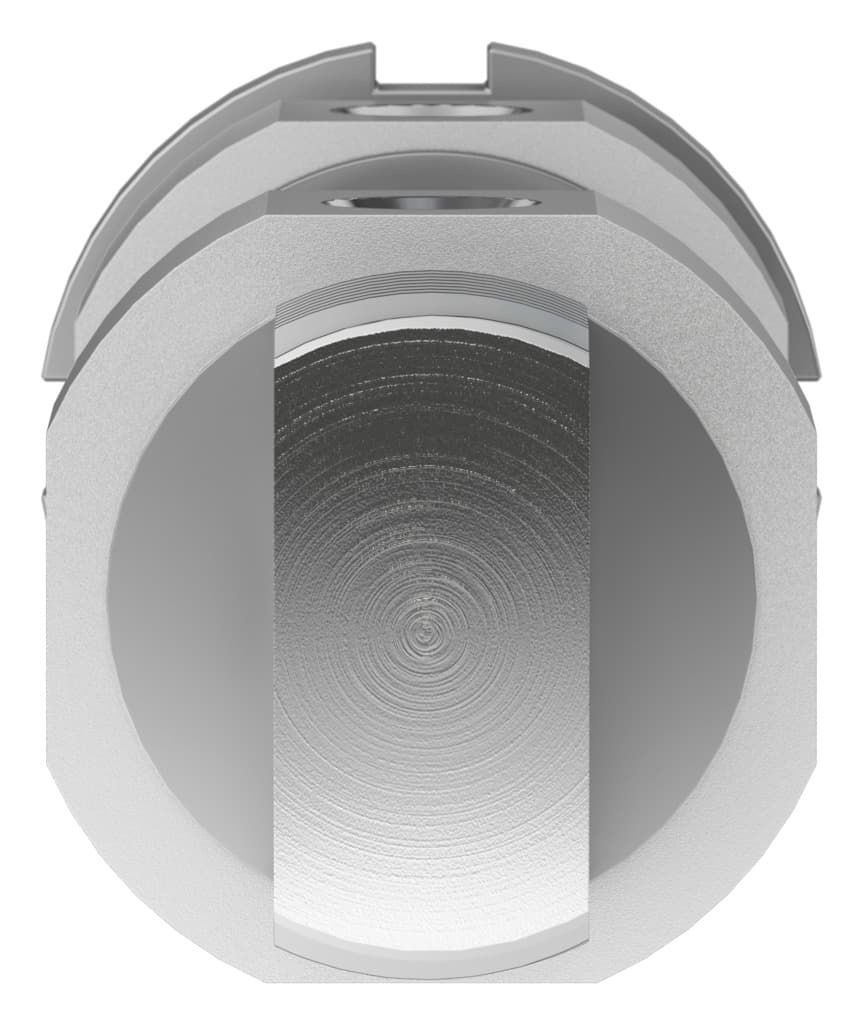

dsnu-40-40-p-a
Product ID:7596
Updated: 2026/4/4
Key Features
- 1Deliver precise motion control with a 40 mm stroke and 40 mm piston diameter. 2、Ensure smooth, stick-slip-free operation using elastic cushioning rings. 3、Integrate flexibly with optional mounting positions for various setups. 4、Secure reliable connections via the M12x1.25 piston rod thread. 5、Enhance durability with corrosion-resistant surfaces per Festo standard.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 633.3N |
| Theoretical force at 6 bar, advancing | 752.9N | Moving mass | 294g |
| Product weight | 757g | Type of mounting | With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 195991 |
Specifications may be subject to change without notice
