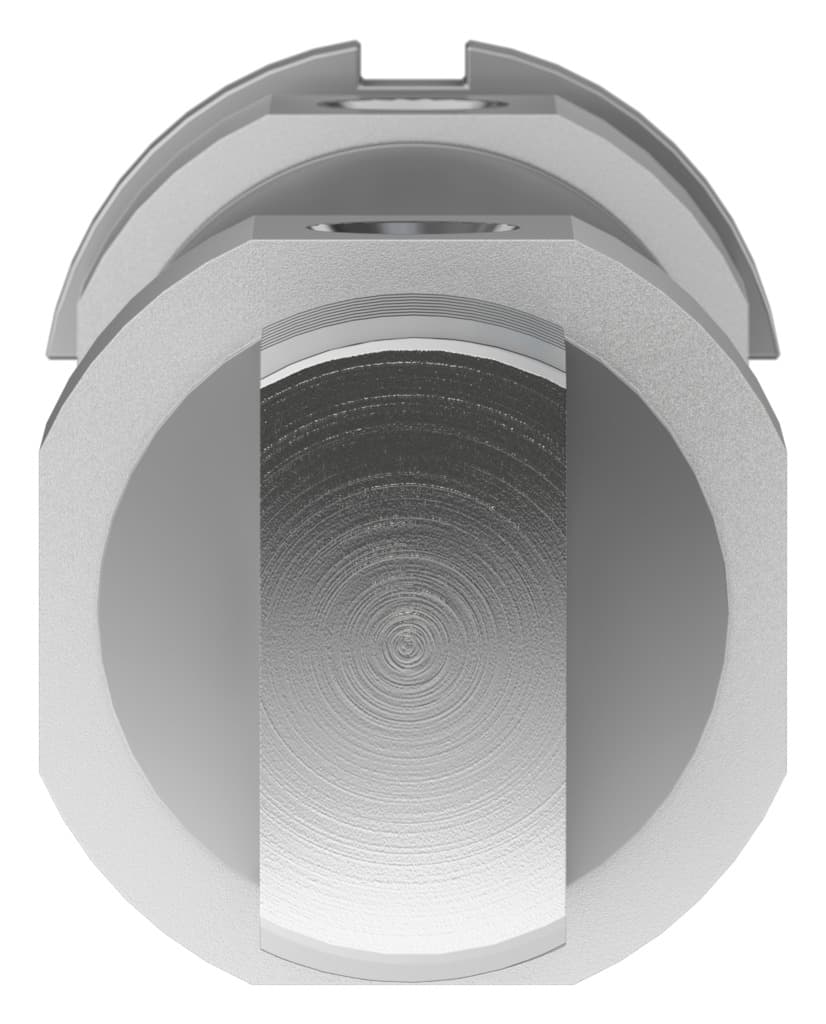

dsnu-40-80-p-a
Product ID:7598
Updated: 2026/4/4
Key Features
- 1Construct with high-alloy stainless steel for durability and corrosion resistance. 2、Incorporate elastic cushioning rings for smooth, stick-slip-free operation. 3、Enable precise position detection via an integrated proximity switch. 4、Offer optional mounting positions for flexible integration. 5、Operate with compressed air meeting ISO 8573-1:2010 and VDMA standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 80mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 633.3N |
| Theoretical force at 6 bar, advancing | 752.9N | Moving mass | 358g |
| Product weight | 853g | Type of mounting | With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 195993 |
Specifications may be subject to change without notice
