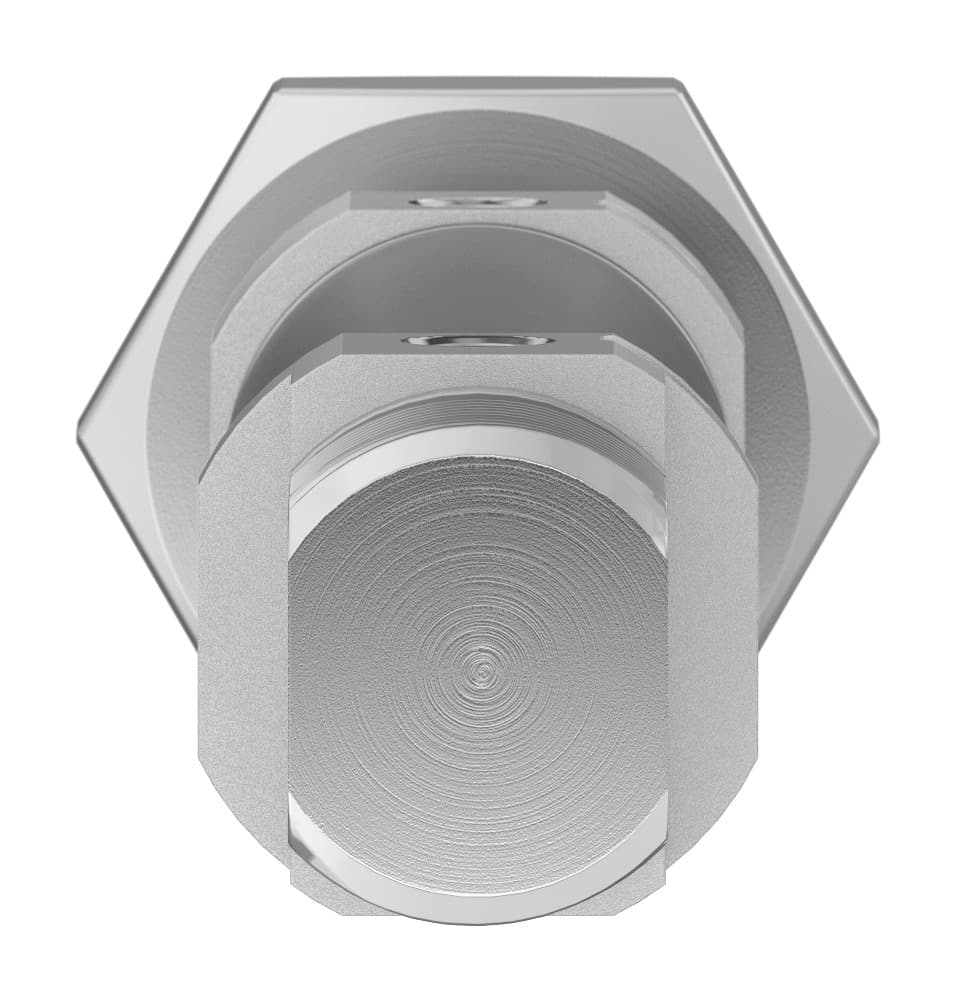

dsnu-5/8"-1"-ppv-a-b
Product ID:11120
Updated: 2026/4/4
Key Features
- 1Offer moderate corrosion resistance for normal industrial environments. 2、Feature flexible cushioning rings for adjustable air cushioning. 3、Design for use with both lubricated and unlubricated compressed air. 4、Provide a standardized mounting interface for easy integration. 5、Deliver industry-leading quality for demanding applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25.4mm | Piston diameter | 5/8" |
| Piston rod thread | 10-32 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.14995J | Cushioning length | 13.97mm |
| Theoretical force at 6 bar, retracting | 103.644N | Theoretical force at 6 bar, advancing | 120.547N |
| Moving mass at 0?mm stroke | 22.992g | Additional moving mass per 10?mm stroke | 2.013g |
| Basic weight with 0?mm stroke | 89.898g | Additional weight per 10?mm stroke | 4.593g |
| Type of mounting | With accessories | Pneumatic connection | 10-32 UNF-2B |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 546389 |
