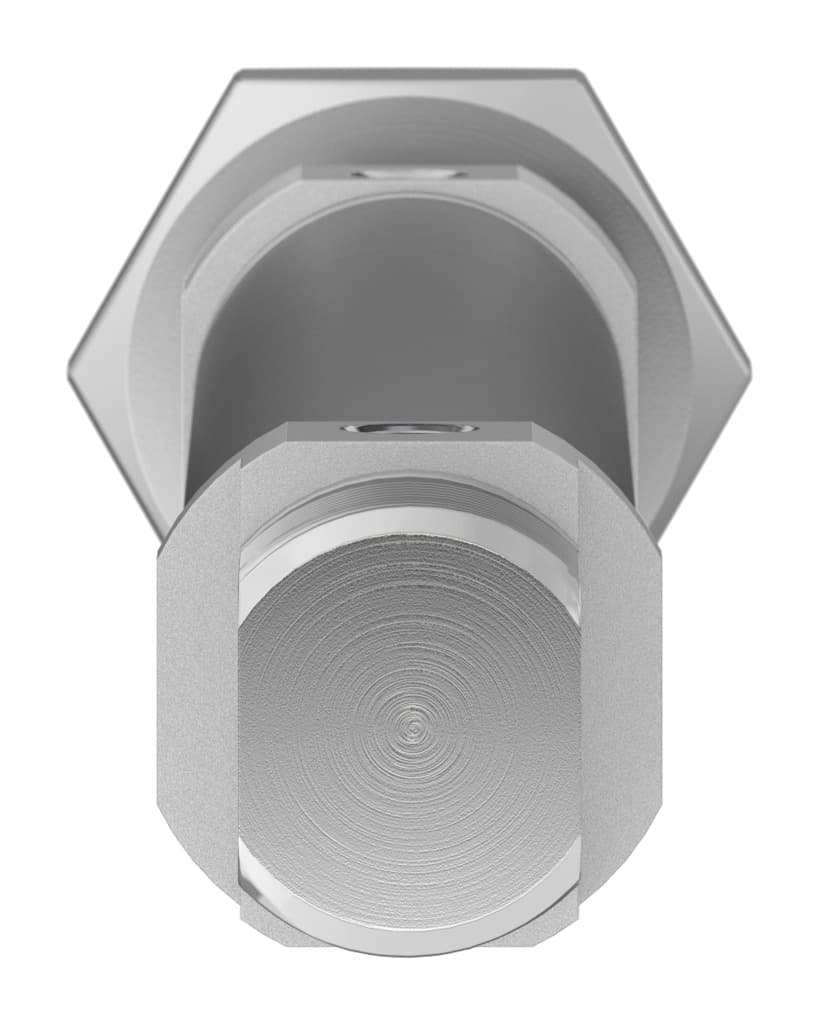

dsnu-5/8"- -p-a
Product ID:11604
Updated: 2026/4/3
Key Features
- 1Ensure smooth operation with adjustable air cushioning. 2、Achieve precise control using the integrated position sensing magnet. 3、Handle demanding 10 bar applications reliably. 4、Simplify installation with 1/4" push-connect fittings. 5、Integrate a ready-to-use cylinder pulled from working equipment.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 203.2mm | Piston diameter | 5/8" |
| Piston rod thread | 10-32 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.14995J | Theoretical force at 6 bar, retracting | 92.256N |
| Theoretical force at 6 bar, advancing | 107.291N | Moving mass at 0?mm stroke | 22.992g |
| Additional weight per 10?mm stroke | 2.013g | Type of mounting | With accessories |
| Pneumatic connection | 10-32 UNF-2B | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 548485 |
Specifications may be subject to change without notice
