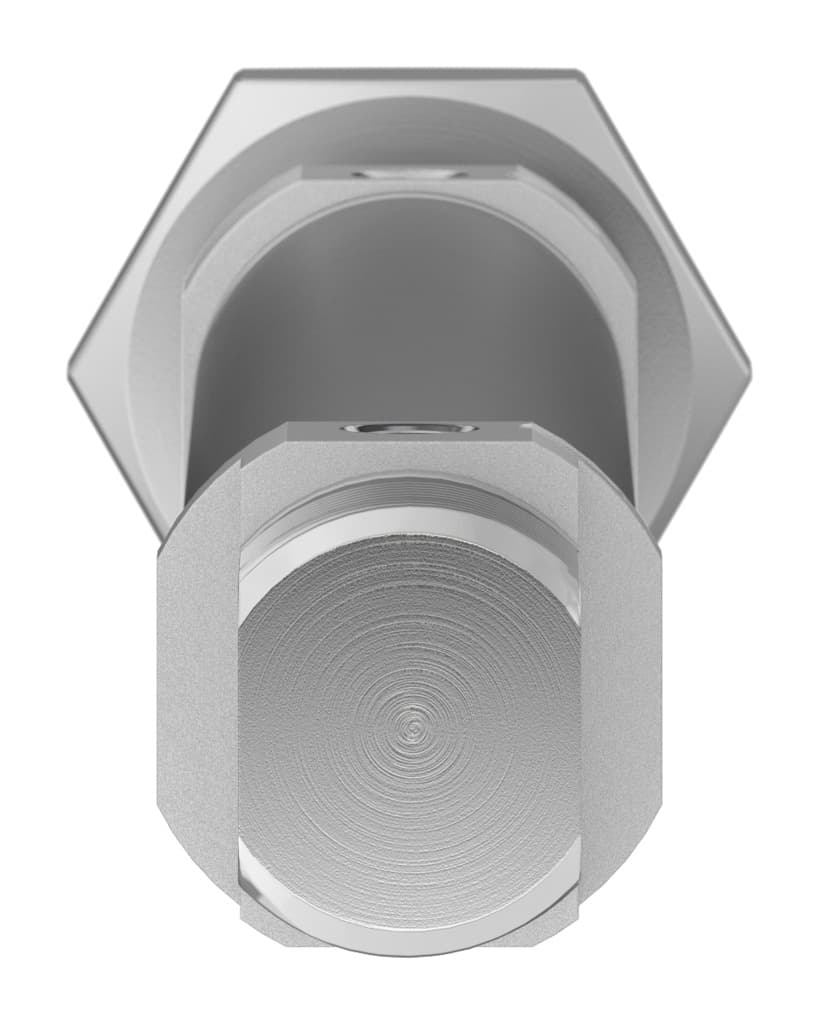

dsnu-5/8"- -ppv-a
Product ID:11611
Updated: 2026/4/3
Key Features
- 1Offer stroke lengths up to 20 inches for versatile application use. 2、Feature adjustable air cushioning for smooth operation and long life. 3、Meet high standards for running characteristics and load capacity. 4、Include a magnet for precise piston position sensing. 5、Provide corrosion resistance for normal industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 203.2mm | Piston diameter | 5/8" |
| Piston rod thread | 10-32 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.14995J | Cushioning length | 11.938mm |
| Theoretical force at 6 bar, retracting | 92.256N | Theoretical force at 6 bar, advancing | 107.291N |
| Moving mass at 0?mm stroke | 22.992g | Additional weight per 10?mm stroke | 2.013g |
| Type of mounting | With accessories | Pneumatic connection | 10-32 UNF-2B |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548501 |
Specifications may be subject to change without notice
