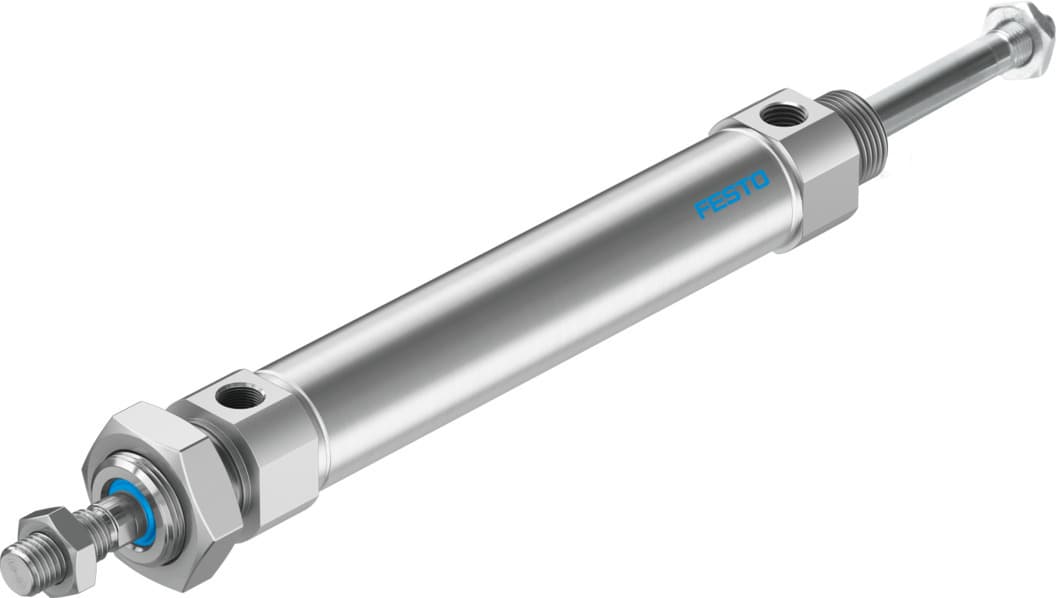

dsnu-5/8"- -ppv-a-s2
Product ID:11623
Updated: 2026/4/3
Key Features
- 1Engineer high performance and precision for reliable operation. 2、Equip adjustable air cushioning at both ends for control. 3、Feature a magnet for precise position sensing and monitoring. 4、Construct with corrosion resistance for industrial environments. 5、Design for easy integration into various automation systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 203.2mm | Piston diameter | 5/8" |
| Piston rod thread | 10-32 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991237 |
| Variants | Through piston rod | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.14995J | Cushioning length | 11.938mm |
| Theoretical force at 6 bar, retracting | 92.256N | Theoretical force at 6 bar, advancing | 107.291N |
| Moving mass at 0?mm stroke | 22.992g | Additional weight per 10?mm stroke | 2.013g |
| Type of mounting | With accessories | Pneumatic connection | 10-32 UNF-2B |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548521 |
Specifications may be subject to change without notice
