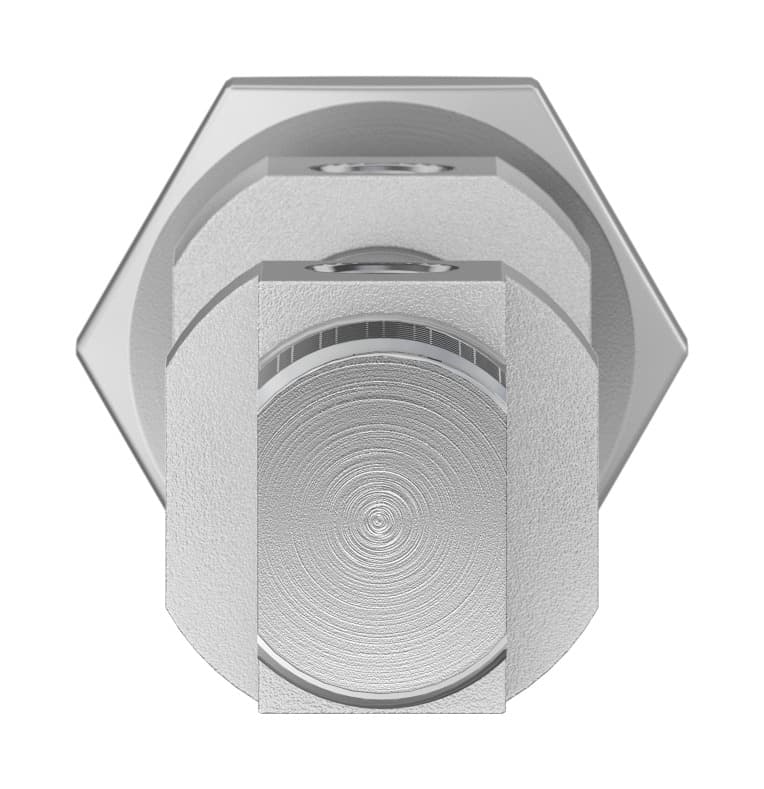

dsnu-8-15-p-a
Product ID:6799
Updated: 2026/4/3
Key Features
- 1Deliver precise 15mm stroke and 8mm piston diameter for reliable automation. 2、Reduce wear with elastic cushioning rings at both ends for smooth operation. 3、Integrate flexibly with optional mounting positions for various systems. 4、Ensure wide compatibility by conforming to CETOP RP 52 P and ISO 6432 standards. 5、Suit diverse environments with CRC 2 corrosion resistance and Class 6 cleanroom rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 8 mm |
| Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.03J |
| Theoretical force at 6 bar, retracting | 22.6N | Additional moving mass per 10?mm stroke | 1g |
| Basic weight with 0?mm stroke | 34.6g | Type of mounting | With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 1908247 |
Specifications may be subject to change without notice
