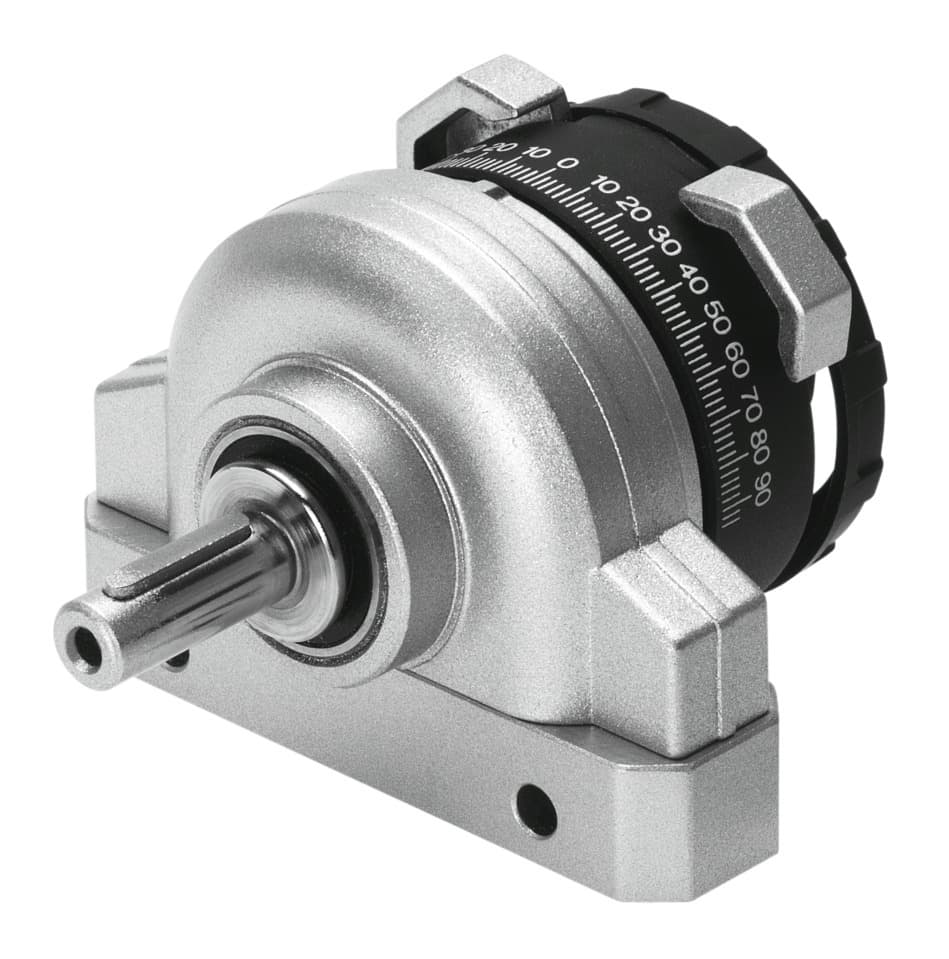

dsr-25-180-p
Product ID:830
Updated: 2026/7/4
Key Features
- 1Achieve versatile 180° swivel angle for precise motion control.
- 2Ensure smooth operation with integrated elastic cushioning at both ends.
- 3Provide precise control using a 1.8° cushioning angle for stability.
- 4Operate reliably within a 1.5 to 8 bar pressure range.
- 5Guarantee durability with a nickel-plated shaft and NBR seals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Cushioning angle | 1.8deg |
| Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | None | Symbol | 00991265 |
| Operating pressure | 1.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Theoretical torque at 6 bar | 5Nm |
| Product weight | 500g | Type of mounting | With through-hole |
| Pneumatic connection | M5 | Drive shaft material | Steel Nickel-plated |
| Seals material | NBR | Manufacturer ID | 11911 |
Specifications may be subject to change without notice
