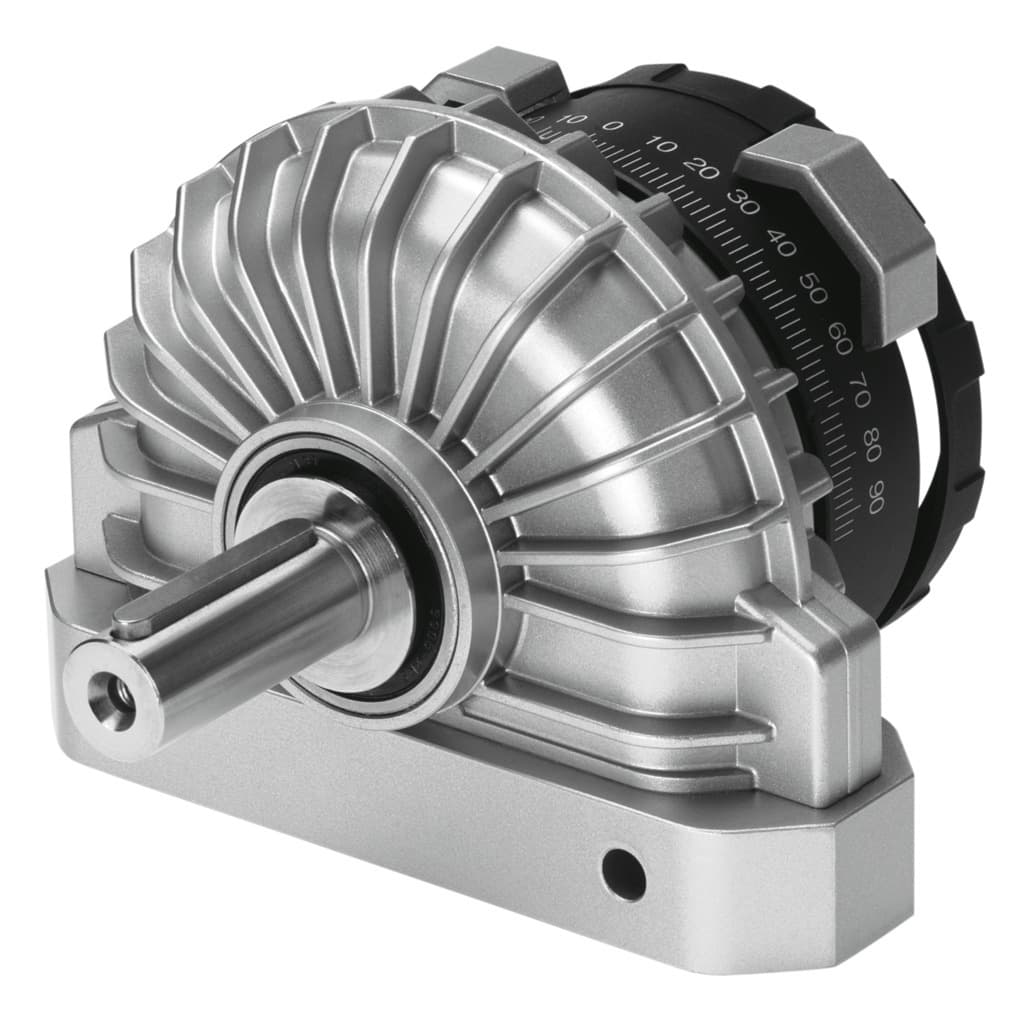

dsr-40-180-p
Product ID:1328
Updated: 2026/4/4
Key Features
- 1Adjust the swivel angle from 0 to 180 degrees for precise positioning. 2、Utilize elastic cushioning rings at both ends to reduce wear and noise. 3、Operate in double-acting mode for versatile forward and reverse movements. 4、Handle pressures from 1.5 to 8 bar for broad system compatibility. 5、Deliver 20 Nm of torque at 6 bar for demanding applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 0.9deg |
| Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | None | Symbol | 00991265 |
| Operating pressure | 1.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Theoretical torque at 6 bar | 20Nm |
| Product weight | 2400g | Type of mounting | With through-hole |
| Pneumatic connection | G1/4 | Drive shaft material | Steel Nickel-plated |
| Seals material | NBR | Manufacturer ID | 13467 |
