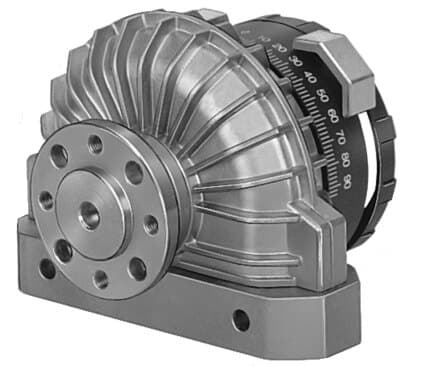

Key Features
- 1Size: 40
- 2Theoretical torque at 6 bar: 20 Nm
- 3Swivel angle: 0 / 180 deg
- 4Position detection: None
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing material | Die-cast zinc | Seal material | NBR |
| Drive shaft material | Steel / Nickel-plated | Cover material | Reinforced polyamide |
| Pneumatic connection | G1/4 | Mounting type | With through holes |
| Product weight | 2400 g | Theoretical torque at 6 bar | 20 Nm |
| Max. radial force | 350 N | Max. axial force | 120 N |
| Ambient temperature | -10 / 60 °C | Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B2-L |
| Operating medium | Compressed air, ISO 8573-1:2010 [7:-:-] | Max. swiveling frequency at 6 bar | 3 Hz |
| Operating pressure | 1.5 / 8 bar | Symbol | 00991265 |
| Position detection | None | Design feature | Vane |
| Operating mode | Double acting | Mounting position | Optional |
| Cushioning | Elastic cushioning rings/pads at both ends | Swivel angle | 0 / 180 deg |
| Swivel angle adjustment range | 0 / 180 deg | Cushioning angle | 0.9 deg |
| Size | 40 |
Specifications may be subject to change without notice
