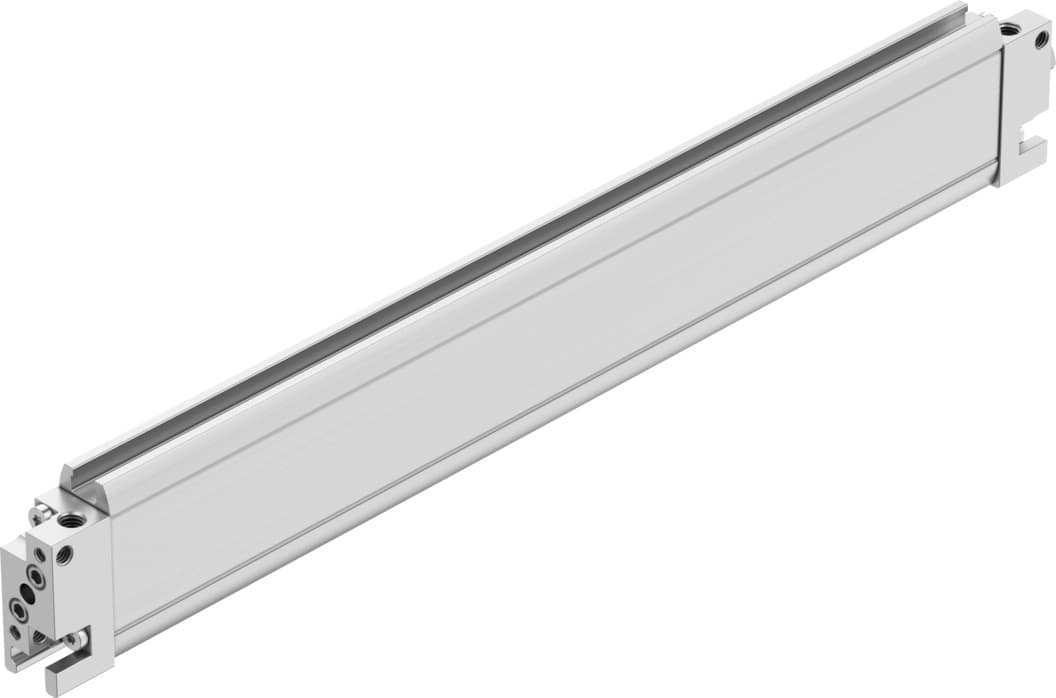

dzf-12-200-p-a
Product ID:4708
Updated: 2026/4/4
Key Features
- 1Deliver precise motion with a 200mm stroke and 12mm piston diameter. 2、Reduce noise and vibration using elastic cushioning rings at both ends. 3、Enable efficient double-acting operation for advancing and retracting motions. 4、Ensure durability with a high-alloy stainless steel piston rod. 5、Operate reliably in temperatures from -20°C to 80°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 200mm | Piston diameter | 12 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Protection against torsion/guide | Oval piston |
| Operating pressure | 1.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Max. torque for protection against rotation | 0.1Nm | Theoretical force at 6 bar, retracting | 51N |
| Theoretical force at 6 bar, advancing | 68N | Moving mass at 0?mm stroke | 12g |
| Additional moving mass per 10?mm stroke | 2g | Additional weight per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 96g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | M5 | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Housing material | Aluminum Smooth anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 164011 |
Specifications may be subject to change without notice
